IKO THOMPSON ASIA CO., LTD.

Miniature Linear Motion Guide - Linear Way L Series ML

The IKO Linear Way L Series ML is a linear motion guide featuring a two-row structure with steel balls that make four-point contact with the track rail. This design provides high precision and rigidity while maintaining a compact form. It also offers a wide range of shapes and sizes to suit various applications. ■ Features Compact Size: The simple two-row, four-point contact design achieves ultra-compact dimensions, with the smallest model, LWL1, having a track rail width of just 1 mm. High Precision and Rigidity: The steel ball-retaining structure ensures stable accuracy under varying load directions and magnitudes. Corrosion-Resistant Stainless Steel: High anti-rust performance makes it suitable for specialized environments such as cleanrooms. Ease of Assembly: The ball-retaining band prevents steel balls from falling out, even when the slide unit is removed from the track rail. Versatile Applications: Available in standard and tapped rail specifications, allowing optimal product selection for various machines and devices. ■ Specifications Material: Stainless steel (carbon steel also available) Structure: Two-row, four-point contact design with ball-retaining band Sizes: Wide and standard configurations available Track Rails: Standard and tapped rail options Options: C-Lube compatibility for special environments Low-noise, low-dust generation using silicon nitride ceramic balls The IKO Linear Way L Series ML is a reliable compact linear motion guide suitable for diverse applications. Please consider the optimal model for your specific use case and environment. For further details, download the PDF or contact us directly. ■ Note "Linear Way" is a trademark of IKO and is distinct from LM Guides or Linear Guides. ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India

C-Lube Linear Roller Way Super X Series MX : High Precision and Maintenance-Free

The IKO C-Lube Linear Roller Way Super X Series MX is a linear motion guide equipped with four rows of cylindrical rollers, offering a combination of high precision and high rigidity. Its roller-type structure is designed to withstand heavy loads, vibration, and shocks, ensuring smooth motion and stability. The built-in C-Lube lubrication system provides long-term maintenance-free operation, reducing lubrication management efforts while maintaining performance. Available in various shapes and sizes, this series is ideal for precision and reliability-focused applications, such as machine tools and semiconductor manufacturing equipment. ■ Features High Precision and Rigidity: Four-row cylindrical rollers ensure stability in heavy-load environments. Long-Term Maintenance-Free: The built-in C-Lube lubrication system reduces lubrication frequency and ensures consistent performance. Variety of Shapes and Sizes: Options include flange type, low-profile flange type, and block type, enabling selection based on machine requirements. Dust-Resistant Design: High dust-resistance prevents the ingress of particles and foreign substances, ensuring stable performance in harsh conditions. Compatibility: Compatible with ball-type linear guides, allowing easy adaptation to existing designs. ■ Specifications Material: Carbon steel, with optional stainless steel available Structure: Four-row cylindrical roller with built-in C-Lube Size Range: A wide selection from 10 mm to 100 mm Shapes: Flange type, block type, low-profile type, and more Accuracy Grades: From standard to ultra-precision grades Preload Options: Standard, light, medium, and heavy preload available The IKO C-Lube Linear Roller Way Super X Series MX is an optimal roller guide for applications requiring high precision, heavy-load performance, and reduced lubrication management. Explore the ideal model for your specific application. For more details, download the PDF or contact us directly. ■ Note "Linear Way" is a trademark of IKO and is distinct from LM Guides or Linear Guides. ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India

Standard Cam Followers CF, CR: Cam Followers with Thrust Washers

The IKO Standard Cam Followers CF and CR series incorporate thick outer rings and needle rollers, offering high-speed performance and exceptional durability with reduced friction. The models with thrust washers use a special wear-resistant synthetic resin between the outer ring and the stud, minimizing friction during mounting errors or when axial loads are applied. This design ensures long service life and excellent durability, even under impact loads. Available in a wide range of stud diameters from 3 mm to 30 mm, the series supports diverse applications. ■ Features With Thrust Washers: Special synthetic resin thrust washers reduce wear and friction, enhancing durability. Wide Size Range: Stud diameters from 3 mm to 30 mm accommodate various applications. High-Precision Needle Bearings: Designed with minimal radial clearance for improved load resistance. Stainless Steel Option: Excellent corrosion resistance for environments with water, oil, or cleanroom requirements. Easy Installation: Studs with threading or stepped designs ensure easy mounting. ■ Specifications Model Name: CF, CR Series (inch models available) Thrust Washer: Made of wear-resistant synthetic resin Stud Diameter: 3 mm to 30 mm Material Options: Stainless steel available Applications: Machine tools, industrial robots, electronics, OA equipment, cleanrooms ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The CF and CR series cam followers with thrust washers are the optimal solution for reducing wear and delivering high durability across a wide range of machinery. For more details, download the PDF or contact us directly.

Cross Roller Way Series: High-Precision Linear Motion with Built-in Cage Slip Prevention

The IKO Cross Roller Way Series is a linear motion guide featuring cylindrical rollers alternately arranged in an orthogonal pattern between two tracks with V-shaped grooves. This structure enables smooth and highly precise linear motion while supporting loads from all directions. The series includes models with an integrated rack-and-pinion mechanism for cage slip prevention, ensuring stable operation even during extended use or high acceleration and deceleration. Additionally, it offers compatibility with conventional Cross Roller Way models for easy replacement in machinery and equipment. ■ Features Cage Slip Prevention Function: The rack-and-pinion mechanism completely eliminates cage displacement during vertical axis use or high acceleration/deceleration operations. High Precision and Rigidity: The orthogonal arrangement of cylindrical rollers in two rows provides stable performance under multi-directional loads. High Compatibility Design: Fully interchangeable with conventional Cross Roller Way models, allowing easy retrofitting. Modular and Standard Types: Choose from modular designs with integrated tracks or traditional four-track structures to meet various needs. Smooth Motion without Stick-Slip: Precision cylindrical rollers and track surfaces minimize friction for seamless movement. ■ Specifications Rack-and-Pinion Models: CRWG, CRWG…H (high-load capacity) Material Options: High-carbon chromium bearing steel or stainless steel Applications: Machine tools, precision instruments, semiconductor manufacturing equipment, and more Mounting Methods: Fixed with threaded holes or through bolts ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The IKO Cross Roller Way Series is a reliable choice for achieving smooth and precise linear motion under complex load conditions. For more information, download the PDF or contact us directly.

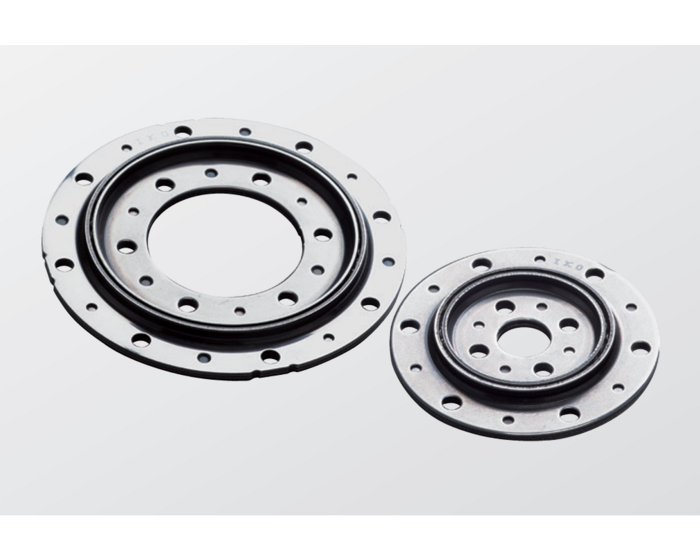

High-Rigidity Cross Roller Bearing CRBHV Series

The IKO CRBHV Series is a cross roller bearing featuring an integrated structure and orthogonal roller arrangement. It provides high rigidity and precision rotation, making it ideal for applications such as industrial robots and medical devices where space efficiency is critical. ■ Features High Precision and Rigidity with Integrated Structure: The inner and outer rings are integrated, ensuring stable installation accuracy and high rigidity. Orthogonal Roller Arrangement with Separator: Built-in separators between rollers reduce friction and deliver smooth rotation. Space-Saving Design: The single-row structure minimizes cross-sectional area compared to traditional double-row bearings, contributing to space efficiency. High Load Capacity: Capable of supporting loads from all directions, effectively distributing stress with a single bearing. Sealed and Open Variants: The sealed type uses special synthetic rubber seals to prevent the ingress of foreign materials. ■ Specifications Structure: Integrated inner and outer rings with orthogonal roller arrangement Variants: Open and sealed types available Rigidity: High-rigidity design to handle complex load conditions Material: Standard steel, with custom options for stainless steel available Applications: Industrial robots, medical equipment, swiveling parts of machine tools ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia Vietnam India The CRBHV Series is the perfect cross roller bearing for swiveling mechanisms requiring high rigidity and precision in limited spaces, offering an efficient space-saving design. For more details, download the PDF or contact us directly.

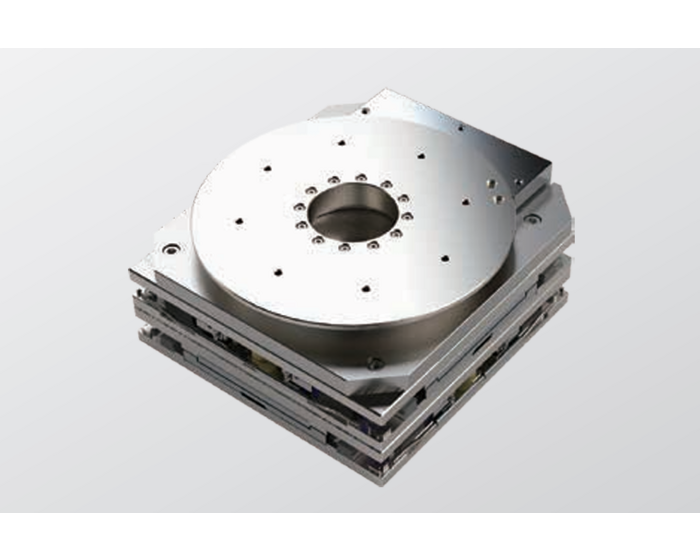

High-Precision Alignment Stage SA Series

The IKO Alignment Stage SA Series features a low-profile and compact design utilizing C-Lube Linear Way and Cross Roller Bearings. It achieves precise positioning through smooth XYθ motion, making it ideal for applications requiring high accuracy. ■ Features High-Precision XYθ Motion: Linear motors and direct-drive motors enable smooth, high-precision positioning on XY and θ axes. High-Resolution Linear Encoder: Options of 0.1 μm and 0.5 μm resolutions are available to meet varying precision requirements. Full Closed-Loop Control: Eliminates backlash, ensuring stable and accurate positioning. Low-Profile and Compact Design: Combines the high rigidity of Cross Roller Bearings with maintenance-free C-Lube technology, suitable for cleanroom environments. Modular Design for Flexibility: Allows for easy assembly of X-axis and θ-axis combinations or XY alignment tables. ■ Specifications Drive Mechanism: Linear motors (XY axes), direct-drive motors (θ axis) Guidance System: C-Lube Linear Way L (linear), Cross Roller Bearings (rotational) Resolution: 0.1 μm and 0.5 μm options Control: Full closed-loop control Applications: Semiconductor manufacturing, LCD-related equipment, cleanroom-compatible systems ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The SA Series Alignment Stage is an ideal positioning system for industries requiring precise alignment and clean environmental compatibility, offering high flexibility in system integration. For more details, download the PDF or contact us directly.

Nano Linear NT･･･V: Compact High-Precision Linear Motor Table

The IKO Nano Linear NT…V Series combines a compact design with high-performance neodymium magnets to deliver high-speed, high-response linear motor tables. Despite its small size, it achieves a maximum thrust of 36 N, making it ideal for precision applications. ■ Features Compact and High-Precision Design: The steel moving table and stator coil are efficiently arranged, enabling precise positioning in a compact footprint. High Thrust and Fast Response: Incorporates high-performance neodymium magnets, delivering a maximum thrust of 36 N for rapid positioning. High Cleanliness: Minimal contact points, limited to the linear guides, make it suitable for use in clean environments such as precision machining and inspection equipment. Long Maintenance-Free Operation: Utilizes C-Lube Linear Way L technology, reducing lubrication requirements and ensuring stable, long-term operation. Motion Network Compatibility: Supports EtherCAT, SSCNET III/H, MECHATROLINK, and RTEX for simplified wiring and advanced system integration. ■ Specifications Maximum Thrust: 36 N Guide Mechanism: C-Lube Linear Way L Linear Encoder: Optical type for high-precision positioning Supported Motion Networks: EtherCAT, SSCNET III/H, MECHATROLINK, RTEX Suitable Environments: Cleanrooms and precision machining environments ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The Nano Linear NT…V Series is an ideal linear motor table for semiconductor and LCD manufacturing equipment as well as precision assembly systems requiring cleanroom compatibility. For more details, download the PDF or contact us directly.

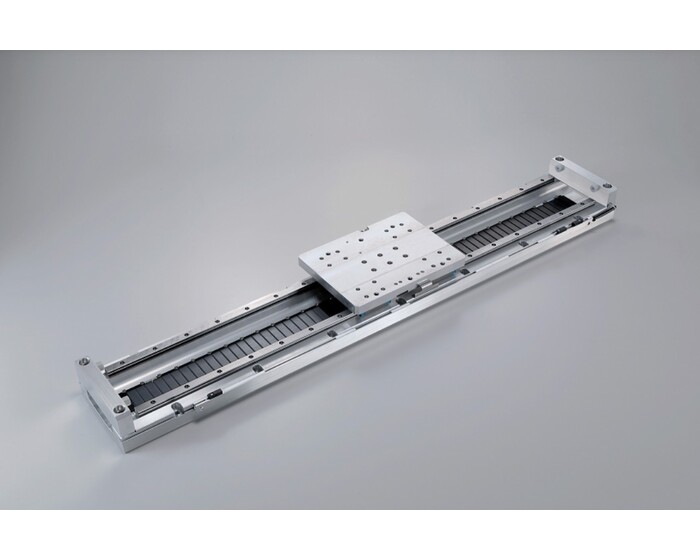

Linear Motor Table LT Series High-Precision, High-Response

The IKO Linear Motor Table LT Series combines a lightweight aluminum table with an AC linear servo motor, delivering compact, long-stroke, and high-thrust capabilities. This high-precision positioning table is ideal for applications requiring advanced performance and versatility. ■ Features Wide Range of Options: LT…CE: Compact series for space-saving applications. LT…LD: Long-stroke series for extended travel ranges. LT…H: High-thrust series for demanding load applications. High Precision and Responsiveness: Built-in optical linear encoder enhances positioning accuracy and motion response. Lightweight and Powerful Thrust: Lightweight aluminum table design allows for high acceleration and deceleration, enabling rapid and dynamic operation. Exceptional Stability: Servo technology improves static and dynamic stability, ensuring precise positioning. Maintenance-Free: C-Lube technology ensures long-lasting lubrication, reducing maintenance requirements. ■ Specifications Guide Mechanism: C-Lube Linear Way L Series Variants: LT…CE: Compact design for space efficiency. LT…LD: Long-stroke series for extended travel. LT…H: High-thrust series for heavy-duty applications. Driver Compatibility: Compatible with high-performance servo drivers for stable control. Applications: Semiconductor manufacturing, LCD-related equipment, measurement, assembly, and transport systems. ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The LT Series Linear Motor Table offers diverse options tailored to specific needs and delivers precise positioning for advanced devices and systems. For more details, download the PDF or contact us directly.

C-Lube Linear Way E ME Series: Long-Term High-Precision Linear Guide

The IKO C-Lube Linear Way E ME Series is a compact linear motion guide equipped with C-Lube lubrication technology for maintenance-free operation. It delivers stable accuracy and rigidity over extended periods, handling complex loads with ease. ■ Features Maintenance-Free Lubrication: The built-in C-Lube maintains lubrication performance over a long period, reducing maintenance time and effort. High Precision and Rigidity: The two-row, four-point contact structure with steel balls ensures consistent precision even under varying loads and directions. Environmental Resistance: Stainless steel options are available for use in cleanrooms and rust-sensitive environments. Diverse Sizes and Shapes: A variety of options, including flange and block types, accommodate different applications. Low-Noise Design: Resin separators prevent direct contact between steel balls, enabling quiet operation. ■ Specifications Material: Carbon steel or stainless steel Structure: Two-row, four-point contact design with built-in C-Lube Shapes: Flange type (top/bottom mounting), block type (bottom mounting) Size Range: 15–45 mm widths, with standard, long, and short options available Accuracy Grades: From standard to ultra-precision grades Preload Options: Standard, light preload, and medium preload available ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The IKO C-Lube Linear Way E ME Series is an ideal compact linear guide for industrial machinery and robotics, providing stable, high precision with the convenience of maintenance-free operation. With a wide variety of shapes and specifications, it meets diverse design requirements. For further details, download the PDF or contact us directly. ■ Note "Linear Way" is a trademark of IKO and is distinct from LM Guides or Linear Guides.

C-Lube Linear Way H Series MH: High-Rigidity Linear Guide

The IKO C-Lube Linear Way H Series MH incorporates the lubrication component "C-Lube" into the standard Linear Way H Series, providing long-term maintenance-free performance. Featuring large-diameter steel balls and a two-row, four-point contact structure, it ensures stable, high precision and rigidity even under varying load directions and magnitudes. With excellent dust resistance and a wide range of sizes and shapes, including flange and block types, it is a reliable solution for diverse applications and challenging environments. ■ Features High-Rigidity Design: Large-diameter steel balls and four-point contact structure provide one of the highest load capacities in ball-type guides. Long-Term Maintenance-Free: Built-in C-Lube reduces the need for lubrication management while maintaining performance over extended periods. Versatile Shapes and Sizes: Available in flange, block, and compact block types to suit various design requirements. Enhanced Dust Resistance: Specially designed seals improve dust resistance, ensuring reliability in harsh environments. Corrosion-Resistant Materials: Stainless steel options offer superior rust resistance for cleanroom and specialized applications. ■ Specifications Material: Carbon steel, stainless steel Structure: Two-row, four-point contact design with built-in C-Lube Size Range: Wide range of sizes from 8 mm to 65 mm Rail Shapes: Flange type (top/bottom mounting), block type (bottom mounting), compact block type Dust Protection Options: High dust-resistant models and options for bellows attachment Accuracy Grades: From high grade (H) to super precision (SP) ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The C-Lube Linear Way H Series MH offers unparalleled reliability and performance, maintaining high rigidity and precision over the long term. It is ideal for industrial equipment, medical devices, and a variety of demanding applications. For more details, download the PDF or contact us directly. ■ Note "Linear Way" is a trademark of IKO and differs from LM Guides or Linear Guides.

C-Lube Ball Spline G: Integrated Lubrication System for Maintenance-Free Operation

The C-Lube Ball Spline G is a linear motion system featuring an integrated C-Lube lubrication system for long-term, maintenance-free operation. Highly valued for its reliability and durability, it is ideal for semiconductor and LCD manufacturing equipment requiring high acceleration and deceleration under demanding conditions. The C-Lube system continuously supplies lubrication oil over an extended period, eliminating the need for frequent re-lubrication and reducing operational costs. This system offers an optimal solution for industrial applications, improving efficiency and lowering costs. ■ Features Built-in Lubrication System: The C-Lube ensures continuous lubrication, enabling maintenance-free operation. High Acceleration/Deceleration Compatibility: Designed to handle demanding conditions in semiconductor and LCD manufacturing equipment. Eliminates Re-Lubrication: Reduces lubrication tasks, simplifying maintenance and lowering system costs. Reduced Running Costs: Minimizes operating costs by eliminating lubrication mechanisms and related tasks. High Durability: Maintains lubrication performance for extended life and stable operation. ■ Specifications Lubrication System: Integrated C-Lube lubrication system Operation: Suitable for high acceleration/deceleration and demanding environments Applications: Semiconductor and LCD manufacturing equipment, high-precision and high-speed systems Maintenance: Maintenance-free design for long-lasting, reliable performance Materials: Standard steel, stainless steel available as an option ■ Applications The C-Lube Ball Spline G excels in the following: Semiconductor Manufacturing Equipment: Ensures precise, durable linear motion in high-demand environments. LCD Manufacturing Equipment: Provides reliable performance under high acceleration and deceleration conditions. General Industrial Machinery: Ideal for systems requiring simplified lubrication management and cost savings. ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The C-Lube Ball Spline G improves overall system efficiency by reducing lubrication maintenance while ensuring long-term reliability, making it a cost-effective choice for various industries. For more details, download the PDF or contact us directly.

Linear Way U Series: High-Rigidity Linear Guide with U-Shaped Track Rail

The IKO Linear Way U Series introduces a new design approach for linear motion guides, featuring a U-shaped track rail. This innovative structure significantly enhances rigidity against moments and torsion, enabling use in cantilevered or double-supported configurations. The track rail can also serve as a structural component of machines or devices, increasing assembly flexibility. The slide unit, incorporating two rows of large-diameter steel balls with four-point contact, ensures stable high precision and rigidity even under varying load directions or combined loads. ■ Features U-Shaped Track Rail: Improved rigidity against moments and torsion allows for cantilevered or double-supported mounting. High Precision and Rigidity: Two rows of large-diameter steel balls with four-point contact ensure stable load handling and precision. Compact Design: Low cross-sectional height supports the miniaturization and weight reduction of machinery and devices. Steel Ball Retention Mechanism: The slide unit includes a ball retention band for easy handling. Machining Flexibility: The track rail can accommodate additional machining to directly mount drive systems or peripheral components (*excluding the area near the track). ■ Specifications Track Rail Shape: U-shaped cross-section Slide Structure: Two rows of large-diameter steel balls with four-point contact Applications: Industrial machinery, conveyance systems, precision equipment, manufacturing devices Machining Capability: Direct mounting of drive mechanisms (*excluding areas near the track) ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The IKO Linear Way U Series, with its U-shaped track rail, offers enhanced design flexibility, high rigidity, and precision, making it ideal for applications requiring robust and compact linear motion guides. For more details, download the PDF or contact us directly. ■ Note "Linear Way" is a trademark of IKO and is distinct from LM Guides or Linear Guides.

Linear Way L: High-Durability, High-Precision Linear Guide

The Linear Way L Series provides exceptional durability and precision with slide units available in stainless steel and carbon steel, making it ideal for a wide range of applications, from medical devices to conveyor systems. ■ Features Free Combination: Slide units and track rails can be freely added or replaced for enhanced flexibility. Two Slide Unit Shapes: Standard and wide types are available to suit various environments and applications. Three Slide Unit Lengths: Short, standard, and long options enable optimal configurations for specific needs. Material Options: Stainless Steel: Offers superior corrosion resistance, ideal for medical devices and cleanroom equipment. Carbon Steel: Allows additional machining and is perfect for general-purpose conveyor and handling systems. Ball Retention Band: Ensures steel balls remain secure even when the slide unit is removed, simplifying handling. Flexible Mounting Options: Choose between tapped rails and standard configurations to increase design freedom. ■ Specifications Slide Unit Shapes: Standard type, wide type Slide Unit Lengths: Short, standard, and high-rigidity long types Materials: Stainless steel or carbon steel Track Rail Mounting Options: Standard Specification: Bolts pass through holes for mounting from below. Tapped Rail Specification: Rails with pre-threaded holes allow flexible mounting directions. Applications: Medical devices, conveyor systems, handling equipment, semiconductor manufacturing equipment, disk reading devices ■ Applications The Linear Way L Series is widely used in the following areas: Medical Devices: The corrosion-resistant stainless steel version is ideal for cleanroom applications. Conveyor and Handling Systems: Durable carbon steel rails with machining options improve system efficiency. Semiconductor Manufacturing Equipment: High-precision slide units meet the demands of devices requiring precise motion. ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The Linear Way L Series offers versatile combinations to meet various design and application requirements, delivering reliable linear motion across multiple industries. For more details, download the PDF or contact us directly.

Ball Spline G: Optimal Linear Motion System with Solid and Hollow Shaft Options

The Ball Spline G is a customizable linear motion system that supports free combinations of spline shafts and outer cylinders. It offers both solid and hollow shaft options to meet diverse application requirements. Stainless steel variants are also available for enhanced corrosion resistance, making it suitable for cleanrooms and harsh environments. ■ Specifications Outer Cylinder Shapes: Standard cylindrical, flange type Outer Cylinder Lengths: Standard, high-rigidity long type Spline Shaft Types: Solid shaft, hollow shaft Materials: Standard steel, stainless steel (optional) Customization: Outer cylinders and spline shafts can be added or replaced independently ■ Applications The Ball Spline G is ideal for: Industrial Machinery: Supports high-precision and high-rigidity linear motion mechanisms. Precision Instruments: Suitable for measuring equipment and control systems requiring smooth motion. Cleanroom Equipment: Stainless steel shafts meet the cleanliness requirements of controlled environments. Lightweight Applications: Hollow shafts provide weight reduction without compromising performance. With its solid and hollow shaft options, the Ball Spline G offers optimal combinations tailored to specific needs. ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India For more details, download the PDF or contact us directly.

Linear Way F Series: High-Rigidity, Wide Linear Motion Guide

The IKO Linear Way F Series is a high-precision linear motion guide featuring a rigid slide unit that moves in an endless linear path on a wide track rail. The two-row, large-diameter steel ball structure with four-point contact ensures stable performance under varying load directions and magnitudes. Its wide design provides excellent strength against moment loads in the width direction, making it ideal for applications with combined loads or single-rail usage. Stainless steel options are available for medical devices and cleanroom environments, supporting a wide range of industrial applications. ■ Specifications Material: Carbon steel, stainless steel (for enhanced corrosion resistance) Structure: Two-row, four-point contact with large-diameter steel balls Slide Unit Shapes: Flange type (standard and low-profile) and block type Moment Load Handling: Wide design provides superior strength against width-direction moment loads Load Balance: Excellent stability under multi-directional loads ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The Linear Way F Series, with its wide track rail and high rigidity, is perfect for industrial applications with frequent load variations. A variety of shapes and sizes are available to suit different environments and requirements. For more details, download the PDF or contact us directly. ■ Note "Linear Way" is a trademark of IKO and differs from LM Guides or Linear Guides.

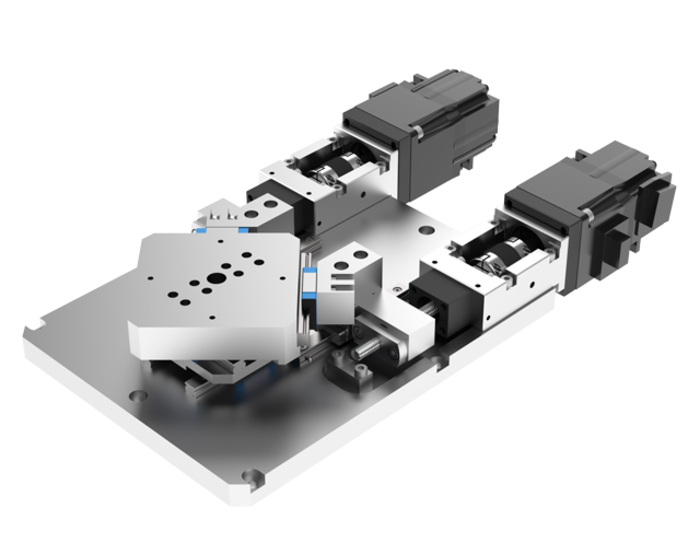

Rack & Pinion Integrated Cross Roller Way Unit

The Cross Roller Way Unit with a built-in rack and pinion mechanism is a high-precision linear motion guide featuring a cage slip prevention system. It delivers stable linear motion with high rigidity, capable of handling loads from all directions. By incorporating the Cross Roller Way CRW into a high-rigidity, ground-finished table and bed, it ensures smooth and precise motion, making it ideal for demanding applications. The unique rack and pinion mechanism eliminates cage slip entirely, enabling reliable performance even during high acceleration, deceleration, or vertical axis operation. Compatibility with conventional Cross Roller Way Units simplifies replacement. ■ Features Cage Slip Prevention: The rack and pinion mechanism fully eliminates cage slip, ensuring stable and reliable motion. Smooth, High-Precision Motion: High-accuracy raceways and ultra-precise rollers minimize friction for stick-slip-free operation. High Rigidity Design: The robust table and bed structure minimizes elastic deformation and supports loads from all directions. Compatibility: Interchangeable with conventional Cross Roller Way Units, allowing for easy retrofitting in existing systems. Simple Installation: Precision-ground mounting surfaces and optimal preload enable straightforward installation and reliable performance. ■ Specifications Model Names: CRWUG, CRWU Series Cage Mechanism: Built-in rack and pinion Material Options: High-carbon chromium bearing steel Applications: Machine tools, precision equipment, measuring devices, industrial robots, and more Mounting: Tapped holes on the table and counterbored holes on the bed for secure installation ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The Cross Roller Way Unit with built-in rack and pinion is a reliable solution for eliminating cage slip and maintaining stable linear motion over extended periods. Its robust design and high precision make it suitable for a wide range of industrial applications. For further details, download the PDF or contact us directly.

High-Rigidity Precision Ball Slide BWU: Ideal for Medical Devices and Semiconductor Equipment

The IKO High-Rigidity Precision Ball Slide BWU is a compact linear motion guide featuring two rows of steel balls with four-point contact. It delivers exceptional precision and rigidity, even under fluctuating or combined loads, making it ideal for high-accuracy applications. Stainless steel options are available for cleanroom environments, such as medical devices, semiconductor manufacturing equipment, and disk readers. The integrated table and bed design minimizes machining errors, ensuring smooth and precise linear motion. ■ Specifications Contact Structure: Two rows of four-point contact Material Options: Stainless steel (for cleanroom compatibility) Applications: Medical devices, semiconductor manufacturing equipment, disk readers, precision measuring equipment Size Range: Multiple sizes available to suit various requirements ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The IKO High-Rigidity Precision Ball Slide BWU combines compactness with high precision and rigidity, making it an optimal choice for medical devices and cleanroom environments. For more details, download the PDF or contact us directly.

Ball Slide: Lightweight Aluminum Structure for Smooth Linear Motion

The IKO Ball Slide is a lightweight and compact linear motion guide that features aluminum alloy construction for both the table and bed. Precision steel balls are guided by a synthetic resin retainer, rolling smoothly on stainless steel round shafts to provide effortless linear motion. The components are treated with corrosion-resistant materials and surface coatings, making the guide suitable for use in harsh environments. Preloaded for optimal performance, the Ball Slide is easy to install by simply bolting it onto a precision-machined mounting surface, delivering stable and precise linear motion immediately. ■ Specifications Materials: Table/Bed: Aluminum alloy with anodized finish Steel Balls/Shafts: Stainless steel Preload Adjustment: Preloaded for immediate use Applications: Precision instruments, medical devices, semiconductor manufacturing equipment, and more Mounting Method: Bolt fixation on precision-ground surfaces ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The IKO Ball Slide offers lightweight construction, high corrosion resistance, and smooth linear motion, making it an ideal choice for medical devices, precision instruments, and other demanding applications. For more details, download the PDF or contact us directly.

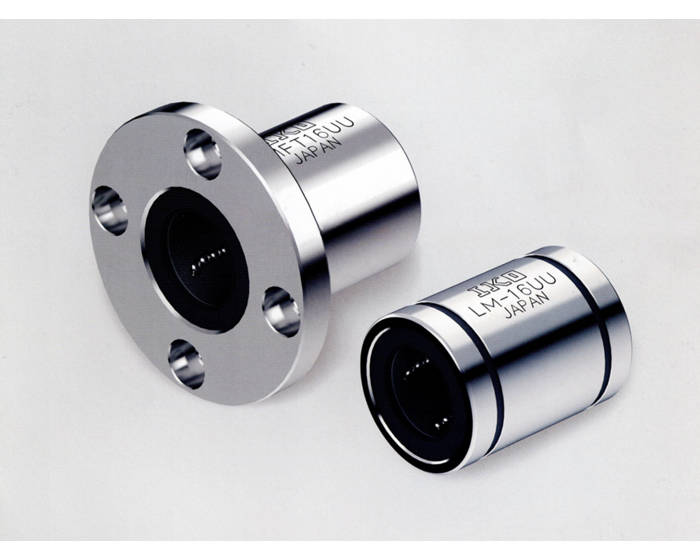

Linear Bushing: Versatile Linear Motion Guide with Sealed and Clearance-Adjustable Options

The IKO Linear Bushing is a high-precision linear motion guide that enables unlimited linear movement along the shaft through rolling contact with steel balls. The compact design integrates a cage and steel balls inside the outer cylinder, providing low-friction, smooth operation with accurate guidance. Various dimensional series are available, including standard, clearance-adjustable, and open types, with options for sealed and non-sealed configurations. Stainless steel models are also offered, making them ideal for medical devices, semiconductor equipment, and cleanroom environments. With its adaptability, the Linear Bushing simplifies the transition to rolling guides in a wide range of applications. ■ Specifications Types: Standard, clearance-adjustable, open Sealing Options: Sealed and non-sealed Material: Optional stainless steel for enhanced corrosion resistance Applications: Medical devices, precision measuring instruments, semiconductor equipment, cleanrooms ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The IKO Linear Bushing is a reliable and versatile solution for achieving precise linear motion, offering a broad range of configurations to meet diverse application requirements. For more details, download the PDF or contact us directly.

Miniature Linear Bushing LMS Series: Lightweight and Compact Design for Precision Applications

The IKO Miniature Linear Bushing LMS is an extremely compact linear motion guide with shaft diameters ranging from 3 to 5 mm, making it ideal for designing lightweight and space-saving machinery and devices. Precisely guided steel balls in the retainer ensure smooth, low-friction linear motion. It is well-suited for applications requiring high-precision feed control and offers a wide range of options, including a high-rigidity long type for demanding applications. Stainless steel options provide excellent corrosion resistance, perfect for medical devices, semiconductor manufacturing equipment, and cleanroom environments. ■ Specifications Shaft Diameter: 3–5 mm Types: Standard type, high-rigidity long type Material Options: Stainless steel for enhanced corrosion resistance Applications: Medical devices, semiconductor manufacturing equipment, precision instruments, disk readers, cleanrooms ■ IKO Thompson Asia Coverage Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions Singapore Malaysia: Kuala Lumpur, Penang, and surrounding regions Indonesia: Jakarta and surrounding regions Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions India The IKO Miniature Linear Bushing LMS offers a compact, precise solution for linear motion needs, making it ideal for medical and semiconductor equipment as well as other precision applications. For more details, download the PDF or contact us directly.
