Product Info

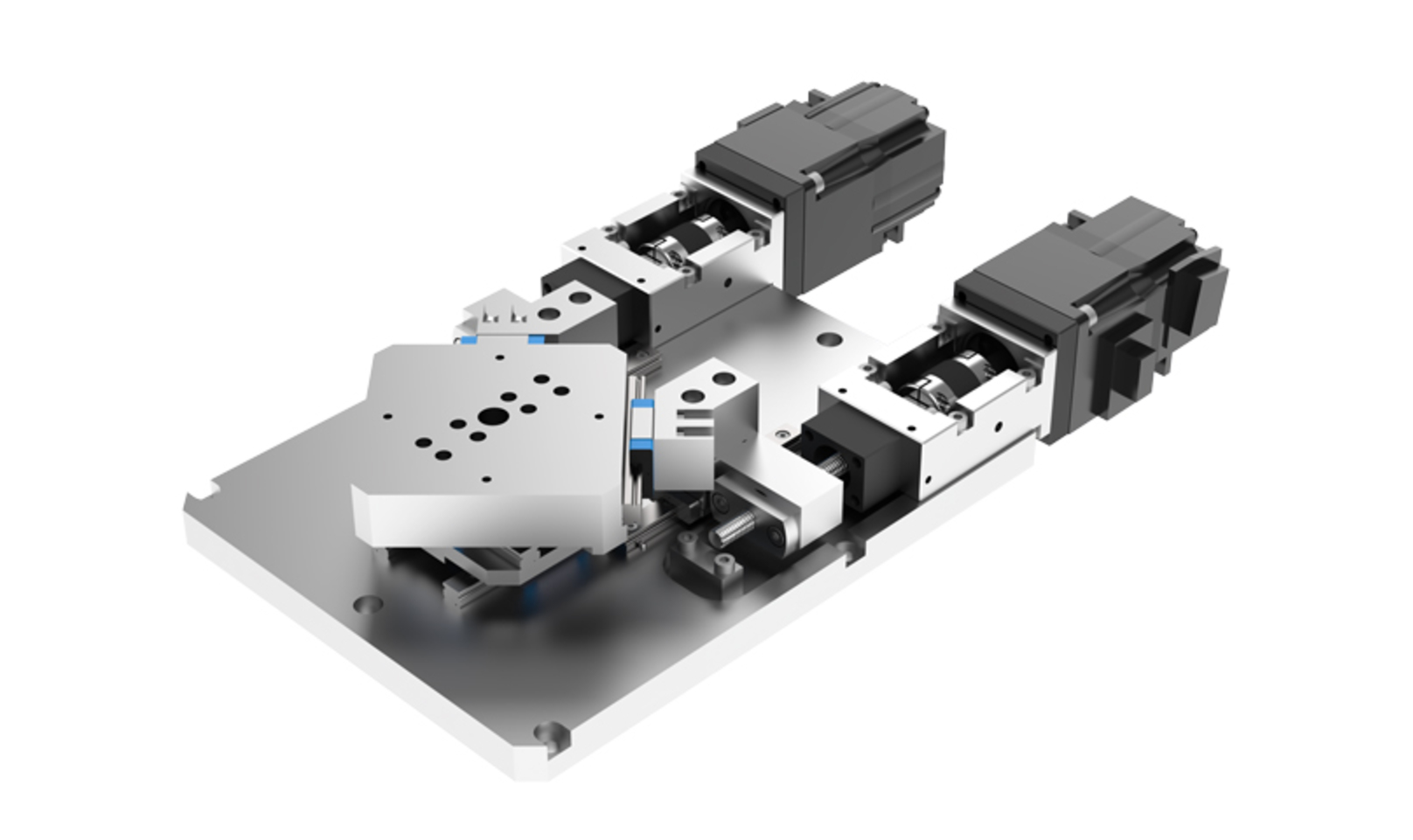

The PD…S XY stage by IKO features a flat-top design with a parallel ball screw drive, enabling high-rigidity motion without top-side interference—ideal for space-constrained automation setups.

■ Product Overview
The PD…S Parallel Drive Stage from IKO introduces a unique parallel ball screw drive configuration that delivers high rigidity and durability in a low-profile XY stage format. By keeping motors and cables outside the stage's top area, it ensures an unobstructed work surface, providing unparalleled design flexibility for modern automation systems.

This cable-free, flat-top design reduces mechanical failure risks, simplifies wiring, and enhances the longevity of the system. The stage integrates C-Lube linear ways, requiring no lubrication and minimizing maintenance.

■ Key Features:
- Dual parallel ball screws for rigidity and load support
- Fixed motor placement avoids work area interference
- No moving cable carriers, ensuring wiring reliability
- Low-height, lightweight build for compact equipment
- C-Lube linear guides—lubrication-free, maintenance-saving
- Compatible with straight, diagonal, and arc motions

■ Recommended Applications:
- Semiconductor and electronic component inspection XY units
- Precision automation in small-part assembly lines
- Micro-transfer systems in medical device manufacturing
- High-density motion units in FA production systems

■ Why Choose PD…S:
- Flat-top surface maximizes layout freedom and usability
- No moving cables—lower risk of wear and failure
- Ideal for cleanroom environments and compact designs
- Supports complex motion profiles with precision and reliability

■ Download the catalog or contact us for detailed specifications.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
