🌟 Key Takeaways
•IMPACT MIRACLE REVOLUTION end mills ensure stable milling in 55–70HRC steels.
•Ultra micro-grain carbide with dual coatings provides over 2× tool life.
•Irregular Helix & Pitch reduce vibration and achieve Ra < 0.2 µm finish.
•Negative rake edges resist chipping in high-speed, high-load cutting.
•The VFR Series covers general to high-efficiency milling.
ーーーーーーーーーーーーーーーーーーーーーーーーーーーー
■ Challenges in Hard Milling Operations
When machining hardened steels such as SKD11 or HAP72 (55–70HRC), rapid tool wear, poor surface finish, and vibration are common issues, resulting in frequent tool changes, increased downtime, and higher production costs.
ーーーーーーーーーーーーーーーーーーーーーーーーーーーー
■ Root Cause of Tool Wear and Poor Surface Quality
High-hardness materials create very high cutting resistance, and general-purpose end mills without heat-resistant or low-friction coatings wear out quickly—especially at high speeds. This results in unstable machining, rough surfaces, and early tool failure.
ーーーーーーーーーーーーーーーーーーーーーーーーーーーー

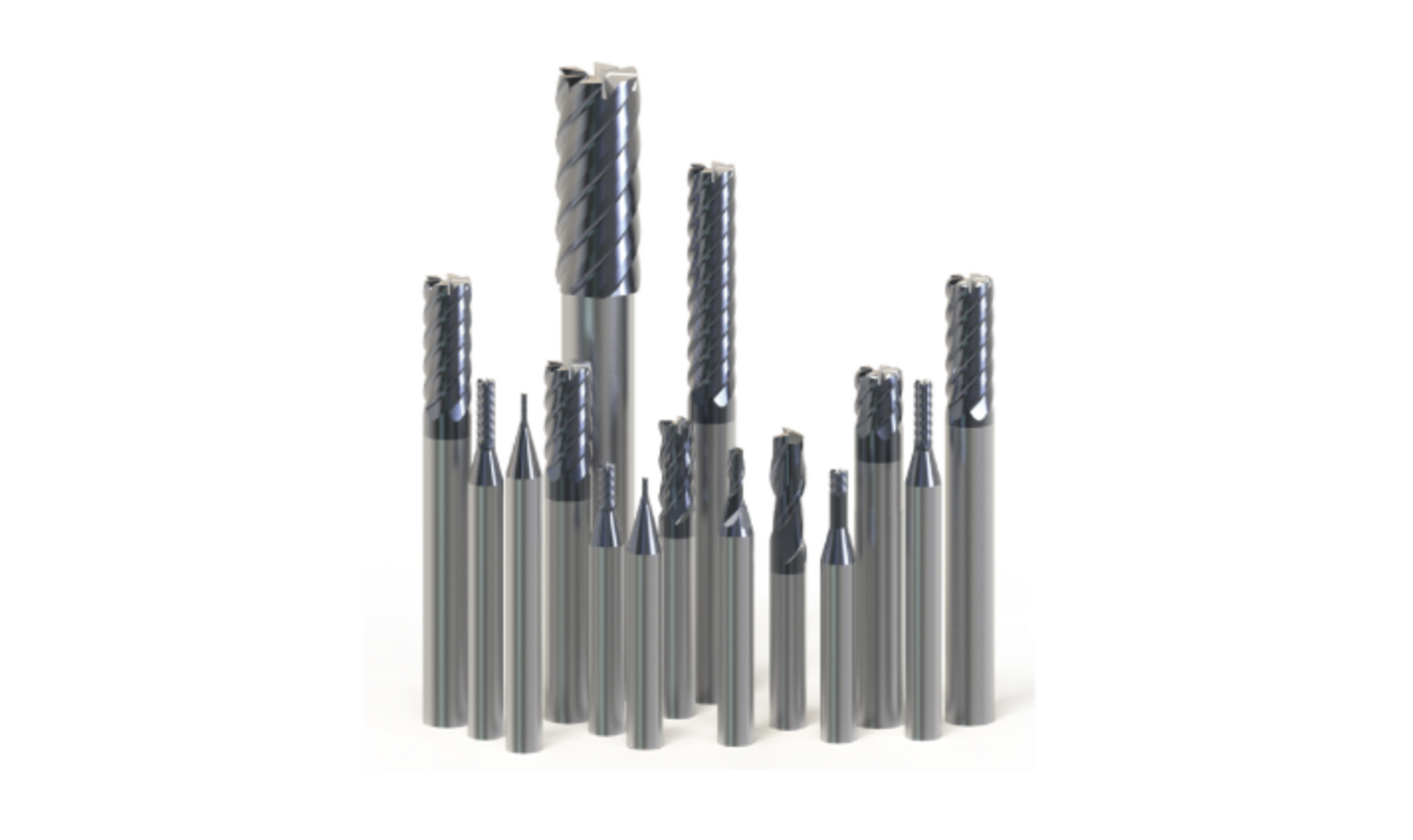

■ The Solution – IMPACT MIRACLE REVOLUTION End Mill Series
Mitsubishi Materials has developed the IMPACT MIRACLE REVOLUTION End Mill Series, featuring a newly engineered (Al,Cr,Si)N + (Al,Ti,Si)N coating layer that offers:
・ Excellent oxidation resistance
・ Reduced friction at the cutting edge
・ Outstanding adhesion between coating layers
With this revolutionary multilayer coating, tool life is extended more than twice compared to conventional end mills when machining hardened steel in the 60–70HRC range.
ーーーーーーーーーーーーーーーーーーーーーーーーーーーー
■ Technical Highlights of the IMPACT MIRACLE REVOLUTION Series
1. Ultra Micro-grain Carbide Structure
Provides high hardness and sharp cutting edges capable of handling steels above 65HRC without chipping.
Ensures excellent strength and cutting stability for continuous machining.

2. Irregular Helix & Irregular Pitch Design
This anti-vibration geometry minimizes chatter and cutting noise.
Ideal for precision finishing of SKD61 (53HRC) and SKD11 (60HRC), achieving a fine surface roughness of Ra < 0.2 µm during testing.

3. Negative Rake Cutting Edge
The negative rake angle increases edge strength, providing excellent resistance to chipping during high-speed and high-load cutting.

4. IMPACT MIRACLE REVOLUTION Coating Technology
・(Al,Cr,Si)N: Provides excellent heat resistance and low friction.
・(Al,Ti,Si)N: Improves adhesion and wear resistance.
In HAP72 (67HRC) testing, tool life increased by over 1.5× compared to standard coatings.

5. Wide Range of Models Available (VFR Series)
・VFR2MV / VFR4MV: 2- and 4-flute anti-vibration types for general machining.
・VFRSD / VFRMD / VFRLD: 4–6 flutes for high-efficiency cutting, offered in various flute lengths.
・VFRSDRB / VFRMDRB: Corner-radius types for finishing that require strong edges and smooth surface quality.
ーーーーーーーーーーーーーーーーーーーーーーーーーーーー
■ Why Choose IMPACT MIRACLE REVOLUTION from MMC Hardmetal
MMC Hardmetal (Thailand) specializes in carbide cutting tools for 50–70HRC hardened steel. With expert support on grade selection and cutting conditions, MMC helps customers achieve longer tool life, reduced downtime, and more stable, consistent machining quality.
ーーーーーーーーーーーーーーーーーーーーーーーーーーーー
📘 Summary
The IMPACT MIRACLE REVOLUTION Series is designed for high-accuracy, stable hard steel milling, using ultra-micro-grain carbide, vibration-reducing geometry, and advanced coatings to reduce cost per part and improve efficiency.
ーーーーーーーーーーーーーーーーーーーーーーーーーーーー
❓ FAQ
Q1: What hardness range is it suitable for?
A1: Hard steels at 55–70HRC, including SKD11, SKD61, and HAP72.
Q2: How much longer is the tool life?
A2: Over 2× longer in 60–70HRC steel and over 1.5× longer in HAP72 (67HRC) tests.
Q3: What surface finish can be achieved?
A3: Roughness of Ra < 0.2 µm on SKD61 and SKD11.
ーーーーーーーーーーーーーーーーーーーーーーーーーーーー
📚 Glossary (Key Terms)
(Al,Cr,Si)N Coating: A coating with high oxidation resistance and excellent lubricity.
Irregular Helix: A non-uniform helix angle that helps reduce vibration and noise.
High Helix Angle (45°): Not explained in the original article.
Corner Radius End Mill: An end mill with a corner radius to reduce edge chipping during fine finishing.
ーーーーーーーーーーーーーーーーーーーーーーーーーーーー
📖 Reference
Mitsubishi Materials TOOL NEWS B231G
IMPACT MIRACLE REVOLUTION (2025)
