HANEDA (THAILAND) CO., LTD.

Precision Jigs & Gauges Full Service Manufacturing Serving Automotive & Electronics Industries

HANEDA (Thailand) offers reliable precision jig, gauge, and machining services in Thailand, backed by Japanese technology and on-site Japanese engineers. We provide end-to-end solutions from design to delivery for industries such as automotive, electronics, and medical devices, ensuring top-tier quality at competitive local cost. 🔹 Vision: “Supporting our customers’ manufacturing with micron-level precision” HANEDA (Thailand) Co., Ltd. serves as your reliable partner in design and manufacturing, delivering high-quality jigs, gauges, and precision components using Japanese technology and a well-established local network to optimize both cost and lead time. 🔹 Company Information: - Company Name: HANEDA (Thailand) Co., Ltd. - Established: June 2005 (merged GTI (Thailand)in 2022) - Location: Samut Prakan (Bangna-Trad KM.17) - Parent Company: Haneda Shokai Co., Ltd. (founded Feb 12, 1951) - Employees: 15 - Main Businesses: Jig and gauge manufacturing, precision machining, cutting tool supply 🔹 Core Services: 1. Precision jig and gauge manufacturing (inspection jigs, assembly jigs, various gauges) 2. Precision parts machining (turning, milling, grinding, wire-cut EDM) 3. Cutting tools and measurement tools distribution 4. Jig design using 3D data or actual parts (Reverse Engineering) 5. End-to-end services: design → manufacturing → inspection → delivery 🔹 Machinery & Strengths: - Full range of CNC machining centers, lathes, grinders, wire-cut, and EDM - 3D measurement using CMM for all parts - On-site Japanese engineers for quality assurance and technical support - Supported materials: SUS, SKD, aluminum, MC nylon, carbide, and more 🔹 Industries We Serve: - Automotive & Motorcycle (valves, shafts, covers, etc.) - Electronics (sensors, miniature connectors, cases) - Medical devices (small and high-precision parts) - Automation systems (bushings, pins, jig components) - OEM manufacturers and custom machinery 🔹 Why Clients Choose HANEDA (Thailand): - Japanese-grade quality with Thai production cost - Practical jig designs tailored for actual site usage - CMM inspection reports provided - Trilingual communication: Japanese, English, Thai - Flexible support for small-volume and urgent jobs #PrecisionJig #GaugeManufacturing #CNCThailand #SamutPrakanFactory #JapaneseEngineering #AutomotivePartsThailand #MeasurementTools #ReverseEngineering #CuttingToolSupplier #MachiningThailand

Conceptual Design & Turnkey Manufacturing of Labor-Saving FA Systems ｜ Haneda Thailand

Haneda (Thailand) Co., Ltd. delivers custom-designed factory automation systems—from concept to commissioning—helping Thai manufacturers reduce labor, improve quality, and shorten production cycles. Haneda (Thailand) Co., Ltd. specializes in custom factory automation (FA) systems that streamline production, reduce labor dependency, and enhance quality stability. With full capabilities in conceptual design, fabrication, installation, and after-sales support, we provide end-to-end automation solutions tailored to each customer’s requirements in Thailand. ■ Scope of Services We provide complete turnkey FA system solutions, including: ・ Conceptual design & requirement analysis ・ Detailed design and optimized component selection ・ In-house fabrication of frames, jigs, drive units, and control panels ・ Testing, on-site installation, and acceptance support ・ Manuals, documentation, and post-installation upgrades ■ Features & Differentiation ・ Custom-built automation systems engineered for each client ・ CAD-driven design process with fast turnaround ・ Operator-oriented functionality, focused on usability and safety ・ Localized support in Thailand, ensuring responsive service and shorter lead times ■ Industries & Applications We serve a wide range of industries with tailor-made FA solutions: ・ Automotive: press-fitting, screw tightening, deburring systems ・ Electronics: PCB conveyors, camera alignment, inspection jigs ・ General machinery: cleaning automation, conveyors, in-line testers ・ Robotics integration: compatible with FANUC and other robotic systems ■ Why Choose Haneda FA System Solutions ・ One-stop support from concept to commissioning ・ Broad capability across assembly, inspection, transport, and cleaning automation ・ Direct impact on labor savings, quality consistency, and productivity ・ Reduced cost and lead time through local design and production in Thailand ■ For more information, please contact us or download the brochure from the link below. #FactoryAutomation #FASystems #HanedaThailand #AutomationSolutions #LaborSavingEquipment #RoboticsIntegration #IndustrialAutomation

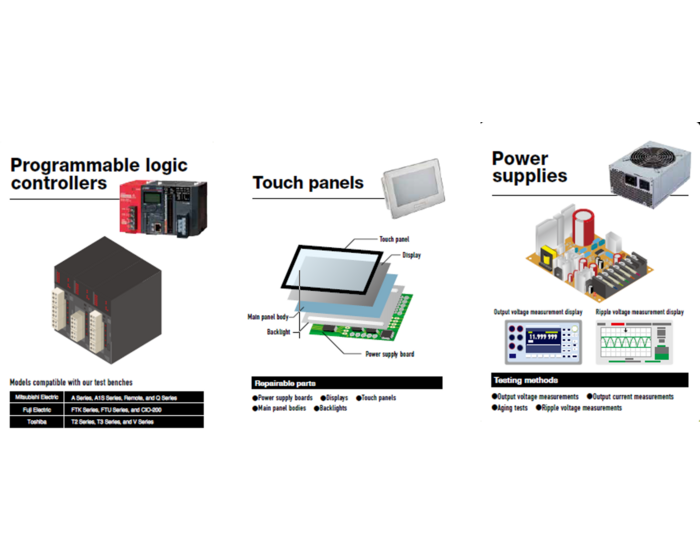

Electronic Equipment Repair & Circuit Board Resuscitation Service ｜ Extend Machine Life in Thailand

Haneda (Thailand) Co., Ltd. restores PLCs, inverters, touch panels, and circuit boards—even discontinued models—through professional repair and resuscitation service, supporting BCP and cost savings for Thai factories. Haneda (Thailand) Co., Ltd. provides specialized repair and resuscitation services for electronic equipment that has become discontinued or is no longer supported by the manufacturer. Our service helps factories extend the life of key production devices, reduce downtime, and strengthen Business Continuity Planning (BCP). ■ Scope of Supported Devices We provide complete fault analysis, part replacement, cleaning, and protective coating for a wide range of devices, including: ・ PLCs (Programmable Logic Controllers): Mitsubishi, Fujitsu, Toshiba major series ・ Touch Panels: Displays, backlights, and power supply boards ・ Power Supplies: Voltage/ripple testing and aging diagnostics ・ Circuit Boards (PCBs): Control, CPU, display, relay, V/O, OPC, LED boards ・ Motors (AC/Servo): Mitsubishi Electric, 0.1 kW–15 kW range ・ Inverters: 200V/400V, including frequency/speed control testing All devices are tested on real-condition benches to ensure reliability before returning to the customer. ■ Key Differentiators ・ Support for obsolete or discontinued models through simulation and replacement ・ Real test benches for functional validation of each device category ・ High-precision diagnostic tools (ripple testers, voltage analyzers) ・ Multi-vendor support for Japanese brands like Mitsubishi, Fujitsu, Toshiba ・ Partial repairs (e.g., display-only, board-only servicing) available ■ Industries & Applications Our repair service is trusted across various industrial sectors in Thailand: ・ Automotive factories: Restoring PLCs and touch displays for production lines ・ Semiconductor & electronics: Repair of power boards and CPU boards ・ Food & pharmaceuticals: Motor and inverter adjustments to extend machine uptime ・ Automation providers: Alternative solutions for EOL (end-of-life) devices ・ Maintenance teams: Preventive repairs for hard-to-replace equipment ■ Why Choose Haneda Thailand’s Repair Service ・ Advanced techniques for reviving discontinued equipment ・ Verified repairs with operational guarantees on actual hardware ・ Customized plans tailored to your budget and lead time ・ Rapid collection and delivery support within Thailand ■ For more details, please contact us using the form below or download the service brochure. #ElectronicsRepair #CircuitBoardRepair #PLCRepair #IndustrialMaintenance #BCP #FactorySupportThailand #InverterRepair

Robot Maintenance & Operation Support ｜ Full Lifecycle Support from Setup to Recovery

Comprehensive support for industrial robots covering installation, inspection, teaching, and emergency recovery. Ensure stable performance with fast Thai-based service and Japanese engineering standards. ■ Service Overview Our Robot Maintenance & Operation Support Service covers the entire lifecycle of robot utilization—from installation and setup to routine inspections, programming, optimization, and emergency repairs. With a Thailand-based technical team and engineering support from our headquarters in Japan, we ensure quick response, high reliability, and long-term operational stability. ■ Service Offerings ・ Robot Installation & Startup ・ Multi-brand robot compatibility ・ Safety configuration and operational checks ・ Adjustment & Teaching ・ Tact time optimization for production lines ・ Application-specific motion programming ・ Regular Inspection (INSPECTION) ・ Preventive checks and component replacement ・ Enables early failure detection and faster troubleshooting ・ Emergency Repairs (REPAIR) ・ Proven recovery record: 95% restored within 24 hours (Japan track record) ・ Quick fault diagnosis and tailored solutions ・ On-site Service Workflow 1. Status check and investigation 2. Fault cause identification and explanation 3. Automatic operation confirmation 4. Reporting and consultation ■ Key Features & Advantages ・ Fast Response: Local Thai team ensures immediate dispatch capability ・ Lifecycle Support: One-stop service from installation to ongoing maintenance ・ Multi-Brand Expertise: Skilled engineers trained across major robot models ・ High Recovery Rate: Proven short repair times with reliable results ・ System Collaboration: Integration with peripheral device design and protection covers ■ Applications in Industry ・ Automotive: Welding, assembly, and logistics systems ・ Electronics: High-precision inspection and assembly processes ・ Food & Pharma: Cleanroom-compliant automation support ・ Metal & Plastics: Handling, palletizing, and part processing lines ■ Why Customers Choose Us ・ Immediate on-site technical response adapted to factory conditions ・ Japanese-standard engineering quality combined with local availability ・ Integrated solutions including robot covers, jigs, and wiring protection ■ For more details, please contact us below or download the materials via the inquiry form. #RobotMaintenance #RobotSupport #FactoryAutomation #IndustrialRobotics #OnsiteRepair #RobotServiceThailand #RobotLifecycle

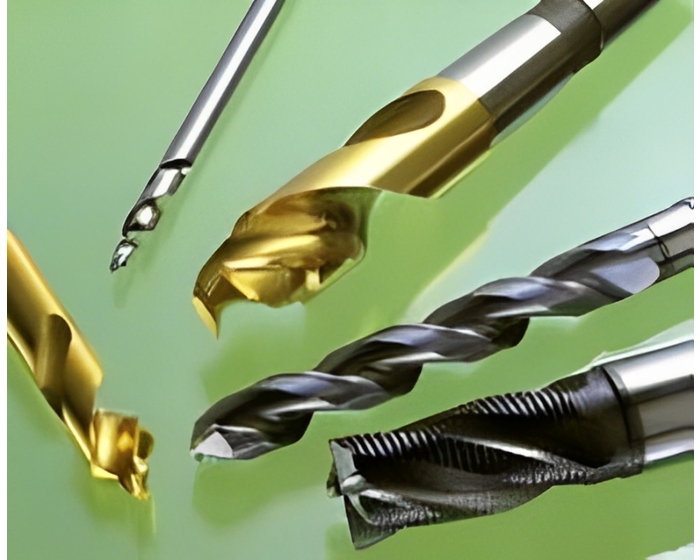

Cutting Tool Regrinding Service｜End Mill & Drill Restoration for Cost Reduction & Precision

Haneda (Thailand) Co., Ltd. provides professional cutting tool regrinding services for end mills and drills, helping factories reduce tooling costs and achieve high machining precision. By combining advanced non-contact measurement and proprietary CX coating technology, we restore worn tools—even from other manufacturers—into like-new condition. ■ Supported Tool Types & Services We customize the regrinding process for each tool geometry to maximize performance and extend lifespan. ・ Pole End Mill: Ball tip regrinding ・ Square End Mill: Edge regrinding ・ Drill: Tip angle and diameter regrinding ・ Other Manufacturers’ Tools: Accepted with reshaping options available ■ Recoating Services｜Durable for High-Speed Machining To withstand high-speed cutting and heat generation, we provide multiple coating options that improve wear resistance and tool stability after regrinding. ・ Coating types available: TiN, TiCN, TiSiN, TiAlN, DLC, Diamond ・ Delamination service (old coating removal) included ■ Applicable Industries & Use Cases Our tool regrinding and recoating solutions are trusted across industries: ・ Automotive manufacturing – reduce tool costs in mass production ・ Aerospace machining – maintain precision on complex components ・ Precision parts production – extend tool life and reduce scrap ・ Mold & die industry – minimize tool inventory and shorten lead times ■ Why Choose Haneda (Thailand) ・ Non-contact measurement guarantees precision and consistency ・ Wide range of coatings suitable for diverse machining conditions ・ Regrinding and reshaping available for tools from any brand ・ Japanese-level regrinding technology provided locally in Thailand ■　For more details, please contact us or download the brochure from the link below. #CuttingTools #EndMill #DrillRegrinding #ToolRecoating #PrecisionMachining #CostReduction #ThailandIndustry #HanedaThailand #OEM

High-Skill Precision Machining ｜ Complex Parts Beyond Standard Capabilities

Haneda (Thailand) Co., Ltd. specializes in precision machining of complex, high-accuracy parts that standard factories cannot handle. With advanced technology and a skilled team, we deliver custom components, prototypes, and one-off solutions with reliable quality. ■ Support for Parts That Cannot Be Machined In-House We provide outsourced machining services for drawings and parts that your factory cannot produce internally. Whether it is a special shape, high-precision process, or difficult material, our team and partner network can handle the challenge. ■ Supported Materials and Parts ・ Metals: Steel, stainless steel, aluminum, copper, titanium, nickel ・ Others: Engineering plastics, ceramics, cemented carbide ・ Product Types: Equipment components, fixtures, prototypes, repair parts ■ One-Stop Machining Services with On-Time Delivery Our integrated machining services cover everything from metal cutting to finishing: ・ Turning, milling, grinding, drilling, broaching, wire cutting, EDM ・ Welding, surface finishing, heat treatment, coating ・ High-level quality assurance with non-contact measuring systems ■ Application Examples ・ Special machine components for automation systems ・ Precision inspection jigs requiring micron-level accuracy ・ Custom parts for prototype equipment and one-off modifications ■ Why Clients Choose Haneda (Thailand) ・ Experienced engineers who understand on-site problems ・ Strong supplier network for quick response to unique requests ・ Flexible scheduling for urgent and custom jobs ・ Strict quality control from start to delivery ■ For more details, please contact us or download our catalog below. #PrecisionMachining #MachiningThailand #CustomParts #PrototypeMachining #HighAccuracy #ManufacturingSolutions #OEM #IndustrialThailand

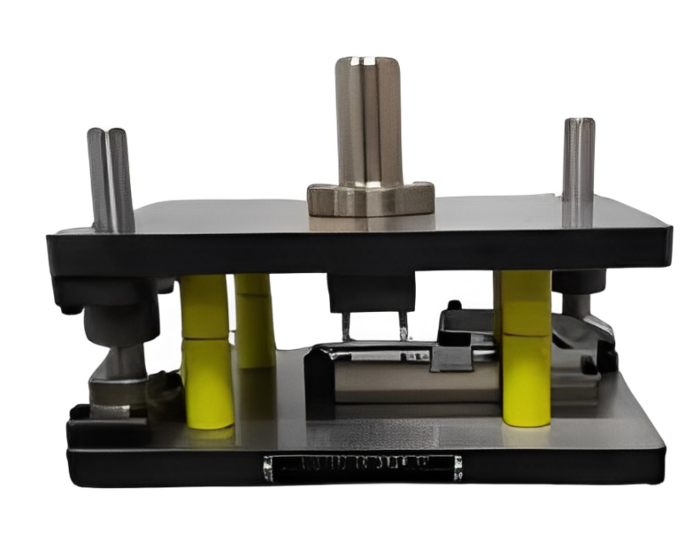

High-Precision Press Jig Reduce Scrap & Setup Time with Japanese-Standard Tooling in Thailand

High-precision press jigs are essential for stable and efficient production lines in automotive and electronic industries. HANEDA (Thailand) offers locally made jigs designed by Japanese experts, helping reduce scrap, shorten setup time, and improve overall productivity. In Thailand’s manufacturing sector—especially in automotive, electronics, and home appliances—metal stamping relies heavily on precision press jigs. These jigs ensure accurate positioning, efficient transfer, and reliable inspection, directly affecting production stability and yield rate. HANEDA (Thailand) delivers Japanese-quality press jigs, designed and produced in Thailand, ensuring faster delivery, responsive service, and cost-effective quality. ■ Industries Using Our Press Jigs: ・ Automotive parts manufacturing ・ Electronic equipment metal forming ・ Home appliance parts molding ・ Custom automation and machine building ■ Available Jig Types: ・ Positioning jigs for press lines ・ Alignment jigs for transfer feeders ・ Inspection gauges for post-process checking ・ Setup jigs for quick mold changeover ・ Auxiliary processing jigs (e.g., bending, drilling) ■ Technical Capabilities: ・ Positioning accuracy: ±0.005 mm ・ Max workpiece size: 850 × 500 mm ・ 3D CAD design & simulation proposals ・ Material options: SUS304, SKD11, SCM, aluminum, MC nylon ・ Shock-resistant and integrated jig designs available ■ Quality Assurance: ・ CMM dimensional inspection ・ Pre-shipment quality reports ・ Drawing control & traceability management ■ Why Choose Local Production in Thailand? ・ Japanese-Thai engineering collaboration ・ Shorter lead time than importing from Japan ・ Fast adjustments for spec changes ・ Lower cost with uncompromised quality ■ Case Studies: ・ Gear housing press jig for Japanese OEM ・ Transfer line alignment jig ・ Welding jig for robot arms (fully produced in Thailand) ■　For more details, please download the PDF or feel free to contact us. #PressJig #HighPrecisionTooling #MetalStamping #SetupReduction #MadeInThailand #JapaneseQuality #FactoryAutomation #MoldJig #HANEDAThailand #SmartManufacturing

Position Jig Custom-Designed High-Precision Fixtures Made in Thailand for Fast Delivery & ±0.005 mm Accuracy

Position jigs are essential for accurate assembly, welding, and inspection processes in automotive and electronics industries. HANEDA (Thailand) provides Japanese-standard, custom-designed jigs with local production, enabling fast delivery and high machining precision. In the manufacturing of automotive, electronics, and automation systems, position jigs are key tools that determine part alignment, reduce defects, and enhance production efficiency. Designed to match exact customer specifications, these jigs improve consistency and operational flow. HANEDA (Thailand) specializes in producing customized positioning jigs with ±0.005 mm accuracy, combining Japanese engineering and in-house Thai manufacturing for fast and reliable service. ■ Target Industries: ・ Automotive parts (machining, die casting, assembly) ・ Electronic component manufacturers and QA labs ・ Automation and FA system integrators ・ R\&D and precision inspection centers ■ Types of Position Jigs Available: ・ Assembly alignment jigs ・ Welding and adhesive jigs ・ Precision inspection and CMM-compatible fixtures ・ Robotic hand and end-effector jigs ・ Cleanroom-compatible positioning tools ■ Technical Features: ・ Machining precision: ±0.005 mm ・ Supported size: 850×500×400 mm ・ Materials: SUS304, aluminum, PEEK, PPS, engineering plastics ・ Full 3D CAD from concept to detail ・ Software: NX, SolidWorks, AutoCAD ■ Facilities and Quality Control: ・ In-house machining centers, wire cut, and grinders ・ 100% inspection with CMM ・ Gauge calibration and full traceability for all jigs ■ Advantages of Local Thai Production: ・ Japanese-Thai engineering collaboration ・ Rapid adjustments for spec changes ・ Multilingual support (Thai, English, Japanese) ・ Complete in-house process: design to delivery ■ Use Case Examples: ・ Automotive cover jig with 7-point checking ・ Robotic jig with counterbalance for heavy parts ・ Inspection fixture with ±0.01 mm tolerance ・ Versatile jig for automated machine lines in Thailand ■ Additional Support Services: ・ Design based on sample parts (no drawings needed) ・ Jig modification and repair services ・ Suitable for mass or prototype production ・ On-site visits and sample trials available ■　For more details, please download the PDF or feel free to contact us. #PositionJig #HighPrecisionTooling #CustomFixture #AssemblyJig #CMMInspection #RobotJig #MadeInThailand #ThaiFactorySupport #HANEDAThailand

Set Workpiece Jig Boost Productivity & Cut Setup Time with Custom Fixtures Made in Thailand

Set Workpiece Jigs are critical for holding complex or precision parts during machining, drilling, or assembly. HANEDA (Thailand) offers complete solutions with local production, delivering fast turnaround and high-accuracy jigs tailored to your process needs. For industries requiring high accuracy and flexibility—especially in automotive, electronics, and medical manufacturing—a Set Workpiece Jig helps secure parts with precision, shorten setup time, and streamline operations. These jigs are vital in both mass production and high-mix, low-volume environments. HANEDA (Thailand) specializes in designing and manufacturing custom jigs optimized for machining, turning, and robotized production. All services are performed in-house, ensuring fast delivery and consistent quality. ■ Target Industries: ・ Automotive parts, electronics, and medical device producers ・ CNC machining centers and robotic automation lines ・ Cleanroom manufacturing environments ・ Factories with frequent model changes or prototyping ■ Jig Types We Offer: ・ Machining jigs for stable workpiece clamping ・ Drilling and tapping fixtures ・ Multi-model jigs for setup time reduction ・ Robotic gripper and holding jigs ・ Quick-change jigs for flexible operations ■ Technical Features: ・ Clamping precision: ±0.005 mm ・ Material options: SUS304, SKD11, MC Nylon, POM ・ Supports 3D scanning & reverse engineering ・ CAD simulations to prevent fitting issues ・ In-house processing: design → machining → inspection ■ Quality Control and Local Support: ・ Full CMM inspection for all jigs ・ Dual-language inspection reports (EN/JP) ・ Packaging, test fitting, and on-site startup support ・ Redesign and repair service available in Thailand ■ Project Examples: ・ Aluminum CNC jig for 4-axis machining ・ Cleanroom jig for transparent plastic positioning ・ Adjustable connector measuring fixture ・ Integrated workholding jig with automatic inspection ■　For more details, please download the PDF or feel free to contact us. #WorkpieceJig #MachiningFixture #QuickChangeJig #GripperJig #CleanroomJig #ReverseEngineering #CNCJig #ThaiManufacturing #HANEDAThailand

Precision Pin Welding Jig ±0.005 mm Stabilize Mandrel & Shaft Welding with High-Accuracy Fixture

For mandrel or shaft welding, precise positioning and anti-deflection support are essential for weld stability. HANEDA (Thailand) offers custom-designed jigs with ±0.005 mm accuracy, manufactured locally for fast delivery and consistent weld quality. In high-precision welding operations, such as those involving mandrels, shafts, or small cylindrical parts, position accuracy and rigid clamping are critical to maintaining weld quality and repeatability. Improper fixturing can cause warping, misalignment, and inconsistent results. HANEDA (Thailand) provides Pin Fixing Welding Jigs designed to your part’s geometry, helping ensure accurate alignment, vibration resistance, and thermal stability—whether for robotic or manual welding lines. ■ Ideal Applications: ・ High-volume welding of mandrel or shaft parts ・ Long-part welding requiring deflection control ・ Robot-compatible production lines ・ Custom designs for complex or small-batch welding tasks ■ Key Features: ・ Positioning precision: ±0.005 mm ・ Supports lengths from 50–600 mm ・ Quick clamp design for fast model changeover ・ Anti-vibration frame resists heat distortion ・ Works with both robotic and manual welding systems ■ Design & Manufacturing Process: ・ 3D CAD design using NX, SolidWorks ・ Thermal and interference simulation pre-checks ・ In-house machining (CNC, Wire Cut, EDM) ・ Full CMM dimensional inspection with detailed reports ■ Benefits of Local Production in Thailand: ・ Japanese-speaking engineers on-site ・ Fast redesigns and spec adjustment ・ Sample testing and factory visit options available ・ Flexible delivery control with local production ■ Example Projects: ・ Robotic jig for exhaust mandrel welding ・ Multi-point shaft clamping jig ・ Mandrel welding fixture for sensor terminals ・ Dual-purpose jig for shaft and bushing welds ■　For more details, please download the PDF or feel free to contact us. #PinWeldingJig #MandrelWelding #HighPrecisionJig #RoboticWeldingFixture #ShaftClampingJig #MadeInThailand #WeldingAutomation #HANEDAThailand

Precision Measuring Jig ±0.005 mm Custom Inspection Fixtures for Stable QC in Thailand Production Lines

Accurate and repeatable inspection is essential for quality control, especially for tight-tolerance parts. HANEDA (Thailand) designs and manufactures custom measuring jigs tailored to workpiece shapes, helping reduce human error and achieve ±0.005 mm precision. For industries with strict dimensional standards—like automotive, electronics, and medical devices—measuring jigs help eliminate operator inconsistency and ensure repeatable quality checks. These tools stabilize the inspection process, especially for parts requiring tight tolerances and frequent measurement. HANEDA (Thailand) provides custom measuring jigs designed for specific part geometries and functional needs. With local production and Japanese-quality control, clients benefit from fast delivery and reliable measurement accuracy. ■ Target Industries: ・ Automotive parts producers (e.g., valve, shaft, and base part inspection) ・ Electronics manufacturers (e.g., sensor, miniature connector testing) ・ Medical device makers (precision and irregular-shaped components) ・ Quality control departments standardizing dimensional inspection ■ Key Features of Measuring Jigs: ・ Precision support up to ±0.005 mm ・ Targets include: diameter, distance, angle, flatness, concentricity ・ Materials: SUS304, SKD11, aluminum, MC nylon, etc. ・ Tools used: GO/NG gauges, dial gauges, custom measurement blocks ・ Ergonomic design for consistent use across different operators ■ Manufacturing & Design Process: ・ CAD design from 3D models or actual parts ・ In-house machining: CNC, wire cutting, grinding ・ CMM verification and inspection reports provided ・ Designed for both fixed and handheld use cases ■ Local Thai Production Advantages: ・ Japanese-standard quality with lead times of 5–10 working days ・ Fast turnaround for repairs or redesigns ・ Multilingual support (Thai / English / Japanese) ・ Local sourcing reduces cost and improves control ■ Application Examples: ・ Valve inspection jig with 3-point measuring ±0.01 mm ・ GO/NG fixture for small plastic connectors ・ Die-cast part flatness and angle measurement jig ・ Runout inspection jig for rotating shafts (dial gauge compatible) ■　For more details, please download the PDF or feel free to contact us. #MeasuringJig #PrecisionInspection #DialGaugeJig #DimensionalQC #MadeInThailand #ThaiFactorySupport #HANEDAThailand #InspectionFixture

Sliding Caliper Gauge Precision Measurement Tool for Shafts, Steps & Diameters

Sliding Caliper Gauges provide stable, high-precision measurements for complex dimensions such as inner/outer diameters, depths, and steps—regardless of operator skill. Especially useful in QA processes and high-mix production lines, this customizable gauge supports consistent inspection for complex or small parts. ■ Accurate & Repeatable Measurement for Complex Shapes In many Thai factories, general calipers often fail to provide the consistency required for quality inspections—especially for parts with intricate features. A Sliding Caliper Gauge solves this by offering a stable, intuitive solution tailored to the shape of your specific part. ■ Why Choose HANEDA (Thailand)’s Sliding Caliper Gauge? We custom-manufacture gauges according to product shape, ensuring reliable and operator-independent results. Each unit is built with attention to Japanese quality standards and verified through CMM inspection. ■ Applicable Industries ・ Automotive: bearing housings, engine mounts, metal holders ・ Precision machinery: jigs, shafts, stainless pins ・ Medical devices: ribbed parts, stepped housings ・ Quality control teams: standardizing inspection processes ■ Product Highlights ・ Accuracy: Custom-fit design for high measurement repeatability ・ Applications: Inner/outer diameters, steps, depth, groove width, part thickness ・ Materials: SUS304, S45C, aluminum, POM, MC nylon ・ Measurement method: Manual sliding with dial gauge, stopper mechanism ・ User-friendly: Consistent results, regardless of operator experience ■ Manufacturing Flow ・ Design from customer’s 3D model or sample ・ Full in-house production: CNC, wire EDM, grinding ・ Delivered with inspection report after CMM validation ・ Flexible designs: single-hand or table-mounted use ■ Why Produce in Thailand? ・ Japanese-grade quality at local Thai production cost ・ Fast delivery: 5–10 business days post design confirmation ・ Multilingual support: Thai, English, Japanese ・ After-sales: Local support for revisions, repairs, and redesigns ■ Common Use Cases ・ Simultaneous diameter & step check for shafts (±0.01mm) ・ Gauge for filter case inner diameter with depth stop ・ Single-motion depth & width gauge for resin housings ・ Die-cast part gauge: outer diameter, flatness, step in one check ■　For more details, please download the PDF or feel free to contact us. #SlidingCaliper #PrecisionGauge #ThaiFactoryTools #DialGaugeThailand #InspectionTool #QAtools #AutomotiveParts #CNCMeasuringTools #StepMeasurement #InnerDiameterGauge

Custom Depth Gauge Precise Tool for Deep Holes, Narrow Grooves & Micro Parts

Custom depth gauges provide accurate measurements in hard-to-reach areas such as deep holes, narrow grooves, and small parts. Ideal for industries requiring precision and consistency, this tool ensures operator-independent inspection for complex geometries. ■ Accurate Measurement in Hard-to-Reach Areas Standard measuring tools often struggle to access deep or narrow spaces, especially in parts with complex geometries. HANEDA (Thailand) offers custom depth gauges designed specifically for pinpoint inspection—even in challenging areas like micro holes or insert positions. ■ Target Industries ・ Automotive: gear cases, oil grooves, bolt hole inspections ・ Electronics: plastic housings, sockets, PCBs ・ Medical: micro-holes, step components ・ Manufacturers seeking consistent in-line measurement tools ■ Product Features ・ Precision: ±0.01 mm or better accuracy ・ Tip Options: needle, flat, cross-type for various part geometries ・ Body Materials: stainless steel (SUS), aluminum, MC nylon ・ Gauge Types: handheld, desktop, fixed-block designs ・ Functions: supports single-point and multi-point measurement ・ Usability: intuitive operation minimizes skill dependency ■ Production Process ・ Based on CAD data or real sample ・ Custom tip design for specific locations (holes, grooves, steps) ・ High-precision CNC machining with lapping finish ・ CMM inspection included with full report ・ Measurement depth: up to 100 mm or per customer spec ■ Advantages of Thai Manufacturing ・ Rapid delivery: 5–7 working days post design confirmation ・ Cost-efficient: Japanese engineering at local Thai prices ・ Support: Local service for design changes or urgent remake ・ Trilingual support: Japanese, Thai, and English engineers available ■ Example Applications ・ Bolt hole depth checks in engine components ・ Die-cast groove inspection tools ・ Mold insert cavity depth gauges ・ Micro-depth probes for electronic housings ■　For more details, please download the PDF or feel free to contact us. #DepthGauge #PrecisionMeasurement #ThaiFactoryTools #MicroPartInspection #DeepHoleGauge #CustomGaugeThailand #QAtools #AutomotiveQC #PCBInspectionTools #GrooveDepthGauge

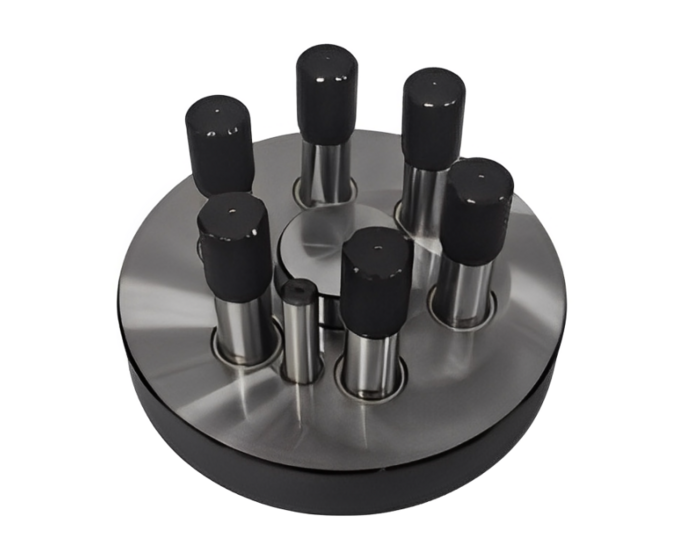

Plug & Pin Gauges ±0.005mm Precision for Hole & Fit Inspection in QC Lines

Plug and pin gauges are indispensable for micron-level inspection of holes and fits in quality control. HANEDA (Thailand) manufactures high-precision gauges locally, offering ±0.005mm accuracy with fast delivery, Japanese standards, and lower cost—ideal for automotive, electronics, and mold industries. ■ Reliable Hole Inspection at Micron Accuracy In industries where component tolerance must be tightly controlled, reliable GO/NG judgment is essential. Standard calipers or visual checks often lack the precision needed. Custom plug and pin gauges solve this by offering high repeatability, consistent results, and superior dimensional control—even in mass production environments. ■ Target Industries ・ Automotive: shaft holes, bushing holes, pin holes ・ Electronics: PCB vias, plastic connector mounts, sleeves ・ Medical/Mold: mold components, micro part fit checks ・ Quality assurance teams: inline or final inspection tools ■ Product Specifications ・ Diameter range: Ø0.20 to 20.00 mm ・ Tolerance: ±0.002mm to ±0.005mm ・ Gauge Types: GO/NG (pass/fail), single or paired sets ・ Materials: SKS, SKD11, carbide, stainless steel (SUS) ・ Coatings: TiN, DLC (optional for wear resistance) ・ Finish: Chamfered edges, surface roughness Ra < 0.2 ・ Packaging: Delivered in protective custom cases ■ Production Details ・ Built from technical drawings or client specs ・ Lathe machining, followed by high-precision lapping ・ CMM and micrometer-based dimensional validation ・ Accompanied by full inspection report and traceability ■ Why Choose HANEDA (Thailand)? ・ No import hassles: All production handled in Thailand ・ Cost efficiency: Localized price with Japanese QC ・ Delivery: 5–7 working days after design approval ・ Support: Local Thai/Japanese technical assistance available ■ Application Examples ・ Bushing hole inspection in plastic and die-cast molds ・ Fit verification in shaft-housing assemblies ・ GO/NG gauges for inline quality control in mass production ・ Inspection of micro holes in electronics and sensor parts ■　For more details, please download the PDF or feel free to contact us. #PinGauge #PlugGauge #MicronInspection #QCtoolsThailand #PrecisionGauge #HoleMeasurement #JapaneseQualityThailand #GaugeSet #FactoryQAtools

Hole Position Inspection Gauge Multi-Hole Pitch Checking Tool for Mass Production QC

Pitch gauges are critical in ensuring the positional accuracy of multiple holes in mass-produced parts such as brackets, molds, and frames. HANEDA (Thailand) offers custom-manufactured hole position inspection gauges with ±0.01mm precision, helping factories streamline quality control across high-volume production. ■ Ensure Hole Accuracy in High-Mix Production Lines In automotive, electronic, and mold manufacturing, even slight deviations in hole positions can lead to assembly errors and defects. A Pitch Gauge provides fast, repeatable measurement of multiple hole-to-hole distances—making it essential for efficient, operator-independent QC processes. ■ Target Industries ・ Automotive: engine covers, brackets, structural frames ・ Mold production: plastic and stamping molds ・ Electronics: PCB pin positions, semiconductor fixtures ・ QC teams: rapid inspection of multi-hole layouts ■ Gauge Features ・ Simultaneous inspection of 2 to 20+ hole pitches ・ Accuracy: ±0.01mm or better ・ Materials: Aluminum, SUS, POM, SKD11 ・ Inspection Method: Dial gauge or plug pin combination ・ Supports various layouts: linear, offset, angle, multi-axis ■ Manufacturing Process ・ Based on 2D/3D CAD or actual product ・ CNC machining, precision grinding, and EDM used ・ 100% CMM inspection with detailed pitch report ・ Tailored designs for different part geometries ■ Advantages of Local Production ・ Design and QC managed by Japanese engineers ・ Delivery: 5–10 business days after design approval ・ No import delay: Localized production reduces cost/time ・ Support: Multilingual engineers (Thai, Japanese, English) ■ Sample Applications ・ Engine cover bolt pitch inspection ・ PCB connector pin alignment checks ・ Mold cavity guide pin positioning ・ Frame and panel multi-hole alignment inspection ■　For more details, please download the PDF or feel free to contact us. #PitchGauge #HoleInspection #PrecisionToolThailand #QCtools #MultiHoleGauge #AutomotiveQC #MoldInspection #PCBAlignment #FactoryMeasurement

Position Gauge ±0.01 mm Accuracy for Shaft & Mounting Hole Alignment in Assembly Lines

Position Gauges are critical for inspecting shaft and mounting hole alignment during assembly. HANEDA (Thailand) manufactures custom gauges for mass production lines, providing ±0.01 mm precision to help prevent vibration, malfunction, or assembly defects in automotive and electronic parts. ■ Accurate Positioning to Prevent Assembly Defects In Thai factories producing automotive and electronic components, even minor misalignment in shafts or mounting holes can lead to noise, wear, or operational failure. A high-precision position gauge ensures accurate hole-to-hole and shaft-to-bracket positioning during inspection, improving long-term product reliability. ■ Key Features ・ Position accuracy: ±0.01 mm ・ Suitable for mass production QC environments ・ Materials: rigid and lightweight aluminum or stainless steel (SUS) ・ Compatible with dial gauges or block gauge setups ・ Custom design based on 2D/3D drawings or actual parts ■ Common Applications ・ Checking shaft center alignment in engine and gear assemblies ・ Verifying mounting hole positions on brackets, covers, and plates ・ Ensuring fit accuracy for mold base components and precision electronics ・ Inline inspections for mass production or final assembly lines ■ Manufacturing Workflow ・ Analysis from customer drawing or sample ・ 3D CAD design → Visual confirmation → CNC fabrication ・ High-precision machining: CNC, wire EDM, grinding ・ Final check with CMM and delivery report included ■ Thai-Based Production Benefits ・ Japanese-engineered QC and design oversight ・ Fast delivery: 7–10 business days from final design approval ・ Multilingual support: Thai / English / Japanese engineers ・ Logistics: Domestic and overseas shipping options ■　For more details, please download the PDF or feel free to contact us. #PositionGauge #MountingHoleInspection #ShaftAlignment #PrecisionToolThailand #QCInspectionTools #AutomotiveAssemblyQC #InlineMeasurement #±001mmGauge #MassProductionQA #FactoryToolThailand

Collet Chuck ±0.005 mm Runout Precision for Stable High-Speed Machining

Collet chucks play a crucial role in stabilizing tools during high-precision machining. With ±0.005 mm runout accuracy, HANEDA (Thailand)’s collet chucks reduce vibration, improve finish quality, and extend tool life—ideal for mold and small-part machining setups. ■ Stable Tool Holding for Micron-Level Accuracy Tool vibration and runout during machining often lead to poor part accuracy and faster tool wear. A precision collet chuck helps maintain consistent tool position, especially for small-diameter and high-speed operations. HANEDA (Thailand) delivers custom chucks built to Japanese standards, now manufactured locally. ■ Key Features ・ Runout accuracy: Within ±0.005 mm ・ Material: High-hardness special steel (HRC60–62) ・ Compatible standards: BT, HSK, NT, ER types ・ High-speed ready: Dynamic balance for stability under RPM ・ Customization: Available for special sizes or shapes ■ Recommended Applications ・ Stabilizing small-diameter tool machining ・ Mold and die manufacturing lines ・ Precision component machining under long-term use ・ Reducing tool holder changeover frequency ■ Support & Service ・ Tool-holder selection advice based on machine/tool type ・ Runout inspection before delivery; report included ・ Some models available in 1–3 business days ・ Technical support: Thai / Japanese / English ・ Full tooling support: chuck + collet + pull stud + wrench ■ Related Products ・ ER collets for standard tool holding ・ Side lock and slim milling chucks ・ Swiss-turn and lathe-compatible chucks ・ Pull studs, torque wrenches, and accessories ■ Why HANEDA (Thailand)? With over 20 years of jig, gauge, and tooling production in Thailand, HANEDA combines Japanese engineering precision with local responsiveness. All collet chucks are produced with exacting quality standards to support optimal tool life and cutting performance. ■　For more details, please download the PDF or feel free to contact us. #ColletChuck #PrecisionMachiningTools #ToolHoldingSystem #RunoutControl #ERChuck #BTTooling #HighSpeedMachining #ToolSetupThailand #MachiningAccuracy #±0.005mmPrecision

Outer Gear ±0.01 mm Precision for Hardened Steel Power Transmission Parts

Outer gears must maintain tight tolerances to ensure efficient power transfer, low noise, and stable rotation in machinery and automotive systems. HANEDA (Thailand) manufactures precision outer gears from hardened steels like SCM440 and SKD11 with ±0.01 mm tooth profile accuracy, ideal for high-load and high-performance applications. ■ High-Precision Outer Gears for Reliable Power Transmission Outer gears used in automotive and machinery assemblies must meet strict dimensional and profile standards. Misalignment or uneven tooth finish can lead to vibration, wear, and transmission loss. HANEDA (Thailand) specializes in gear machining for hardened steel—offering tight profile control and complete inspection with CMM and microscopes. ■ Technical Features ・ Precision gear cutting for hardened steels (HRC58–62) ・ CNC hobbing with module range 0.5–3.0 ・ Tooth profile tolerance: ±0.01 mm ・ CMM & tool microscope inspections with report ・ Reverse engineering: from drawing, 3D CAD, or sample ■ Supported Specifications ・ Spur gears (external type) ・ Shaft integration: center hole, D-cut, keyway supported ・ Partial and angled tooth profiles possible ・ One-piece gear-shaft structures also available ■ Dimension Range ・ Outer diameter: up to Ø150 mm ・ Tooth width: 5–50 mm ・ Surface roughness: Ra ≤ 0.8 ・ Materials: SCM440, SKD11, S45C, etc. ・ Standards: DIN / JIS compliant ■ Manufacturing Workflow 1. Drawing / 3D / Sample submission 2. Process design & quotation 3. Hobbing → Heat treatment → Grinding 4. Final inspection via CMM + microscope 5. Delivery with full inspection report (JP/EN/TH) ■ Target Industries ・ Automotive: reduction gears, shaft-mounted gears ・ Machine components: drive and transmission systems ・ Automation: servo gear units, linear transfer systems ■ Why Choose HANEDA (Thailand)? ・ Consistent ±0.01 mm precision in gear production ・ Full in-house manufacturing under Japanese QC ・ Reverse engineering service available (no drawing required) ・ Material/process advice tailored to each use case ■　For more details, please download the PDF or feel free to contact us. #OuterGear #PrecisionGear #HardenedSteelMachining #SCM440Gear #±0.01mmTolerance #GearHobbing #ThaiManufacturing #AutomotiveGears #TransmissionParts #MachineComponentGear

Flange Part Production CNC Machined with ±0.01 mm Accuracy for Sealing & Fit

Flange parts play a vital role in connecting shafts, pipes, and structural components. At HANEDA (Thailand), we provide integrated CNC turning and machining services for flanges with ±0.01 mm precision, ensuring excellent sealing, fit, and durability—ideal for automotive and machinery applications. ■ Accurate Flange Parts for High-Sealing and Load Applications Flanges must meet strict requirements for dimensional tolerance, bolt hole layout, and flatness to prevent leakage, vibration, or poor assembly. HANEDA (Thailand) offers fully integrated flange manufacturing—from material processing to final inspection—delivering stable quality for high-performance systems. ■ Technical Features ・ CNC turning for outer diameters from Ø10 to 200 mm ・ Simultaneous machining: bolt holes, chamfers, keyways ・ Compatible materials: SUS304, SCM440, S45C, aluminum ・ Surface finish: Ra ≤ 0.8, with strict control of flatness & concentricity ・ 100% inspection using CMM + tool microscope, with inspection report ■ Example Product Types ・ Standard round flanges with center holes and bolt circle ・ Double-sided flanges for housing covers ・ Irregular flange parts with threaded holes and profiles ・ Integrated machining: turning + milling + tapping ■ Production Flow 1. Drawing, 3D CAD, or sample received 2. Process plan and quote 3. Full CNC turning + milling 4. Flatness and dimension inspection 5. Delivery with inspection report (JP/EN/TH) ■ Target Industries ・ Automotive/Motorcycle: shaft flanges, exhaust flanges ・ Industrial machinery: gearbox and drive housing flanges ・ Pneumatic/hydraulic systems: sealing surfaces ・ Equipment parts requiring tight fit and structural strength ■ Why HANEDA (Thailand)? ・ Japanese engineering supervision, local Thai production ・ 20+ years of turning, jig, and precision assembly experience ・ Reverse engineering support for parts without drawings ・ Trilingual support: Thai, Japanese, English ■　For more details, please download the PDF or feel free to contact us. #FlangePart #CNCTurningThailand #±0.01mmMachining #MachineryParts #AutomotiveFlange #PrecisionFlange #FlatnessControl #ToolMicroscopeInspection #SUS304Flange #SCM440Machining

Carbide Center Wear-Resistant Live & Dead Centers with ±0.01 mm Runout Accuracy

Carbide centers are essential for stable, high-precision turning and grinding. HANEDA (Thailand) manufactures custom carbide centers with ultra-hard tips and ±0.01 mm runout precision, ensuring long-lasting performance under continuous or high-load operations in CNC lathes and grinders. ■ High-Hardness Centers for Consistent Machining Precision In turning and cylindrical grinding, the center’s accuracy directly impacts roundness, vibration, and surface finish. Carbide-tipped centers provide outstanding wear resistance and long tool life. HANEDA’s locally produced carbide centers are customizable for various lathe types and operating loads. ■ Technical Features ・ Ultra-hard carbide tip (HRA 86–92) ・ Compatible with live and dead center applications ・ Runout accuracy: ±0.01 mm (adjustable per need) ・ Tip angles: 60°, 90°, or custom specifications ・ Supports workpiece diameters: Ø5–150 mm ・ Suitable for continuous operation and high-load machining ■ Product Specs ・ Standard 60° tip; custom shank length & shape ・ Optional: anti-slip grooves for rigid holding ・ Available in high-precision models for fine grinding ・ Designed for compatibility with DIN / JIS standards ■ Production Process 1. Customer drawing or spec review 2. Material selection (carbide + shank) 3. Tip assembly via brazing or press-fit 4. Turning + precision grinding 5. Final inspection (CMM, microscope) with runout report ■ Recommended Applications ・ Shaft holding in CNC turning centers ・ Dead-center support in cylindrical grinders ・ Mass production of rods, axles, or hardened shafts ・ Long-term machining with high load or high contact pressure ■ Why Choose HANEDA (Thailand)? ・ Guaranteed ±0.01 mm runout with full inspection ・ Japanese-standard quality control with local production benefits ・ Support for both custom specs and global standards ・ Scalable production: small to large batches with fast delivery ■　For more details, please download the PDF or feel free to contact us. #CarbideCenter #LiveCenter #DeadCenter #TurningTool #HighLoadMachining #±0.01mmPrecision #CNCGrindingTools #ToolHoldingThailand #WearResistantTip #LatheAccessory
