Showa Sokki Model-9900 VibroView – multi-channel vibration analysis software with FFT, audio playback, and CBM support.

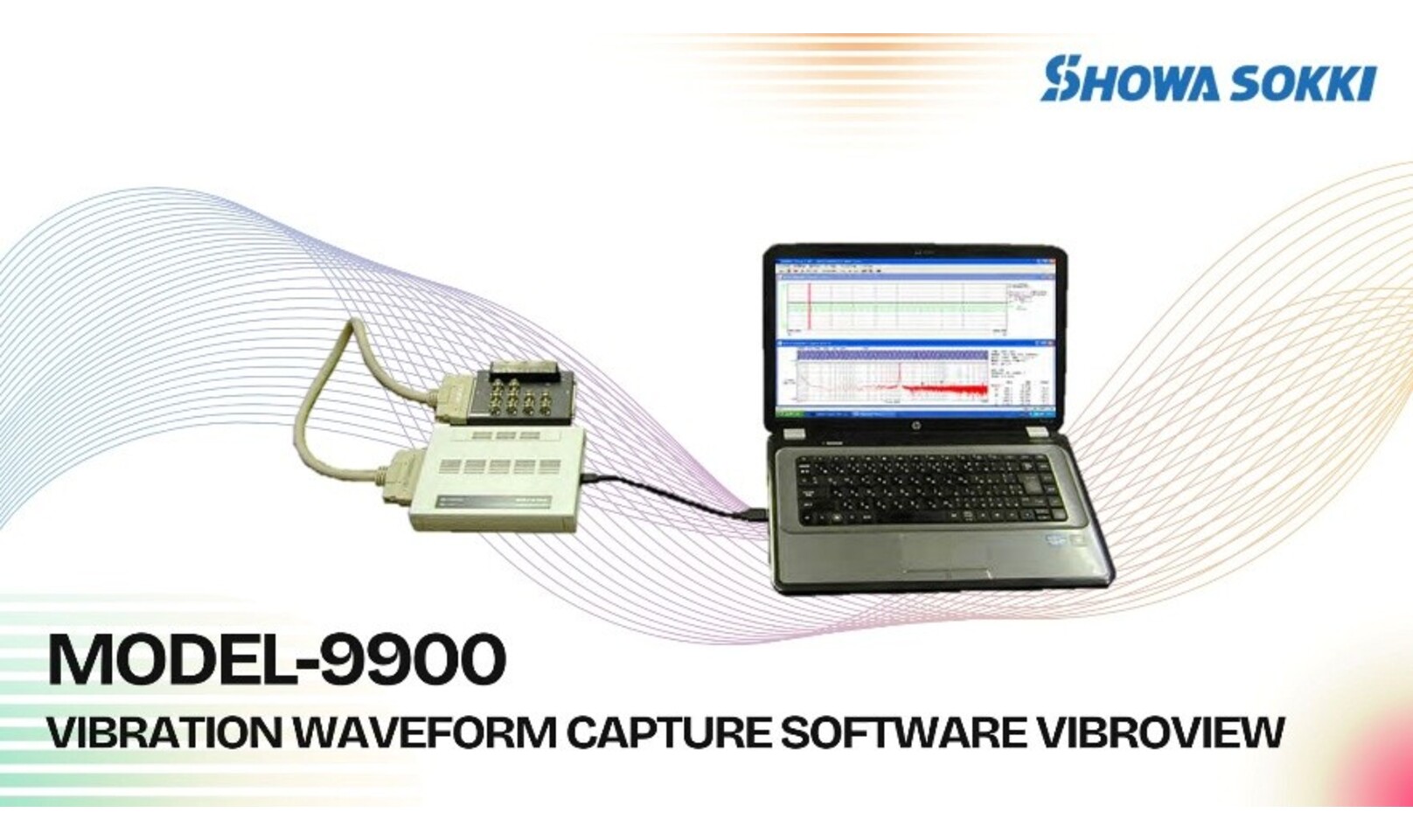

🔷 Model-9900 VibroView – Advanced Vibration Analysis Software
The Model-9900 “VibroView” from Showa Sokki is an advanced vibration measurement and waveform analysis software that enables engineers to capture, visualize, and analyze vibration data on a PC. It supports both real-time analysis and post-processing, making it suitable for a wide range of industrial and research applications.

VibroView supports simultaneous acquisition of vibration signals across up to 32 channels, with multiple display formats such as TY time-history graphs, FFT frequency spectra, and XY plots. Engineers can apply custom filters, recalculate data, and even replay vibration waveforms as audio for intuitive diagnostics.

With its ability to handle multi-channel, high-resolution vibration data, the Model-9900 VibroView is an indispensable tool for R&D, predictive diagnostics, and Condition-Based Maintenance (CBM) programs.

🔷 Key Features
‐ Acquire and analyze vibration data from up to 32 channels simultaneously
‐ Multiple display options: TY / FFT / XY plots
‐ Flexible operation: Real-time or Post-analysis modes
‐ Add custom filters and perform recalculations
‐ Audio playback of vibration waveforms for enhanced diagnostics
‐ Save data in CSV or Binary formats for further use

🔷 Main Specifications
‐ Input Channels: Up to 32CH
‐ Input Range: ±10V
‐ Input Impedance: ≥1MΩ
‐ A/D Converter: 16-bit, resolution up to 2µs/CH
‐ Max Sampling Frequency: 160kHz
‐ PC Interface: USB2.0
‐ Trigger Modes: Manual / One-shot / Repeat
‐ Trigger Level: ±10V
‐ Recording Length: Limited only by HDD capacity
‐ Display Formats: TY / XY / FFT
‐ File Formats: Binary / CSV
‐ Window Functions: Rectangular / Hanning / Flat Top / Hamming
‐ Additional Features: FIR / Butterworth filters, audio playback
‐ Recommended OS: Windows XP / Vista / 7 / 8.1 (32-bit)
‐ Recommended PC Specs: Pentium M 1GHz or higher, ≥760MB RAM

🔷 Applications
‐ Multi-channel vibration monitoring of industrial equipment
‐ FFT waveform analysis for root-cause diagnostics
‐ Condition-Based Maintenance (CBM) and predictive monitoring
‐ Research & Development (R&D) testing of prototypes and structures
‐ Audio-based vibration evaluation for fault detection

🔷 Distribution & Support
Showa Sokki supplies and provides support for Model-9900 VibroView throughout Thailand, including major industrial estates in Chonburi, Rayong, Ayutthaya, Pathum Thani, and Bangkok.

🔷 For full specifications, please download the product PDF or contact us directly.
Download : https://prime.nc-net.com/105994/en/catalog/detail/7544
