Showa Sokki Model-2590C – digital vibration monitor with LED RMS display, dual alarms, and scalable 4–20mA input.

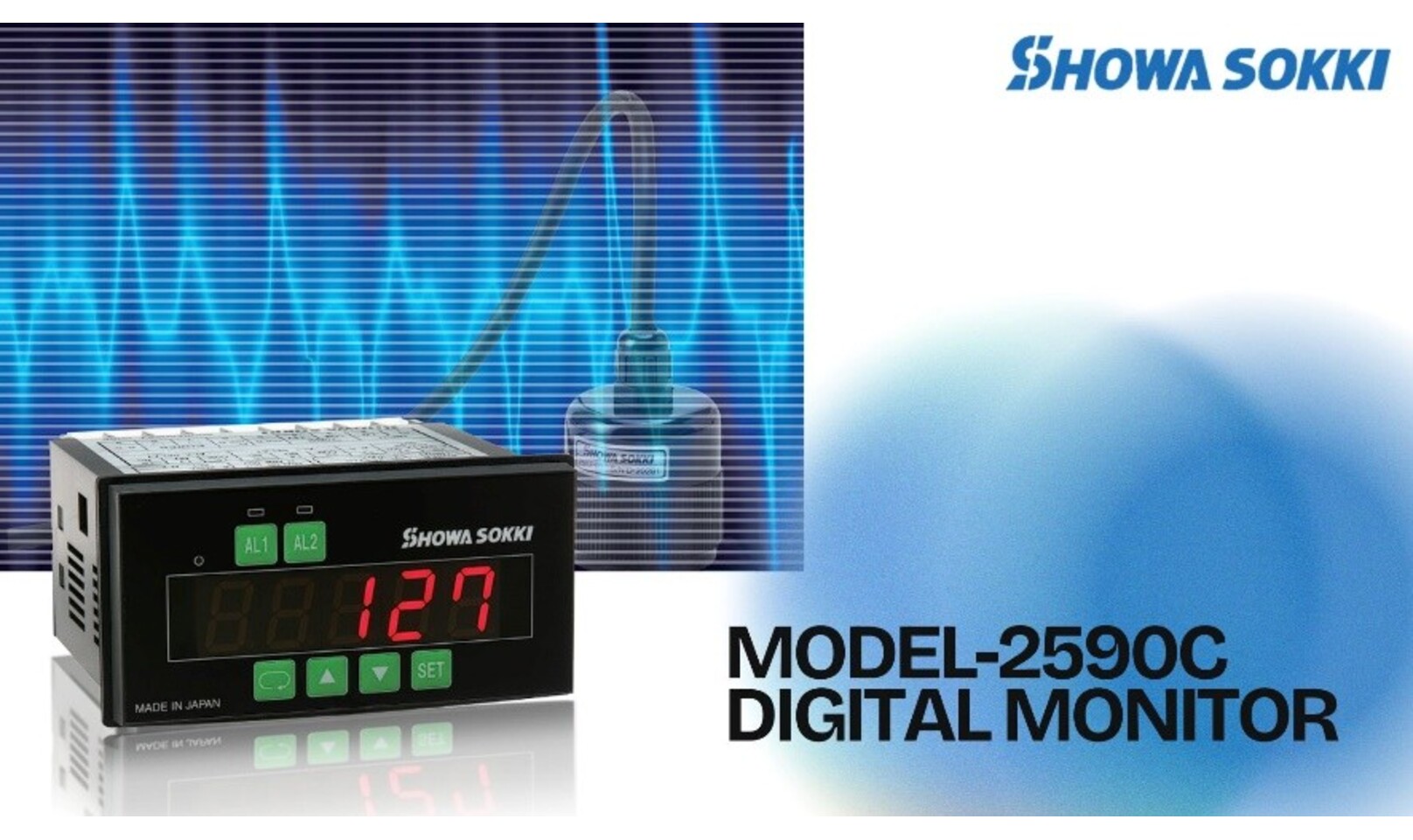

🔷 Model-2590C – Digital Vibration Monitor with LED Display
The Model-2590C from Showa Sokki is a digital vibration monitoring display designed for equipment condition monitoring and early abnormality detection. When combined with the Vibro Converter 2502 and 2503 series, it forms a simple yet effective vibration monitoring system.

It supports input signals of 4–20mA (standard) and optional 0–1V / 0–10V, displaying real RMS vibration values clearly on a red LED panel. With dual-stage alarm relays and a configurable delay timer, the Model-2590C provides reliable abnormality detection while preventing false triggers.

🔷 Key Features
‐ Clear RMS vibration display via red LED (5-digit)
‐ Dual-stage alarm relays (ALⅠ, ALⅡ) for fault detection
‐ Delay timer (0.1–99.9 sec) prevents false operation
‐ Input support: 4–20mA (standard), optional 0–1V / 0–10V
‐ Built-in DC24V sensor power supply
‐ Optional analog output: 4–20mA, 0–5V, 1–5V, 0–10V
‐ Easy DIN rail mounting
‐ Front panel rated IP65 (with rubber gasket)

🔷 Specifications
‐ Input Signal: 4–20mA (standard), 0–1V / 0–10V (optional)
‐ Input Resistance: 10Ω
‐ Display: 5-digit red LED, configurable full scale
‐ Sampling Periods: 0.125–5 sec (default: 1 sec)
‐ Accuracy: ±0.3% ±1 digit (at 23°C ±5°C)
‐ Power Supply: AC85–264V, 50/60Hz, 15VA max (DC24V option)
‐ Relay Output: AC250V 5A / DC30V 5A (resistive load)
‐ Analog Output (optional): 4–20mA, 0–5V, 1–5V, 0–10V
‐ Dimensions & Weight: 96(W) × 48(H) × 92(D) mm, ~300g
‐ Operating Environment: 0–50°C, ≤85%RH (non-condensing)

🔷 Applications
‐ Condition monitoring of pumps, blowers, and rotating equipment
‐ Early detection of vibration abnormalities in factories and plants
‐ Simple vibration monitoring system when paired with converters

🔷 Distribution & Support
Showa Sokki supplies and supports the Model-2590C across Thailand, including major industrial zones in Chonburi, Rayong, Ayutthaya, Pathum Thani, and Bangkok.

🔷 For detailed specifications, please download the product PDF or contact us directly.
Download : https://prime.nc-net.com/105994/en/catalog/detail/7540
