💡 Key Takeaways
- TS3000 delivers 85%+ ASHRAE efficiency with an initial pressure drop of only 59 Pa
- Dust Holding Capacity: 1300 g/m² → longer service life & reduced clogging
- Two models: TS3000S (Dry Booth / Automotive) & TS3000H (High-VOC applications)
- Anti-Clogging Pre-filter for extended filter lifespan and easy media replacement

ーーーーーーーーーーーーーーーーーーーーーーーー

In industrial spray-painting processes, overspray particles often accumulate inside the air system.
If not controlled, this results in:

- Odor and VOC buildup
- Unstable booth pressure
- Fast filter clogging
- Poor surface finish and increased NG

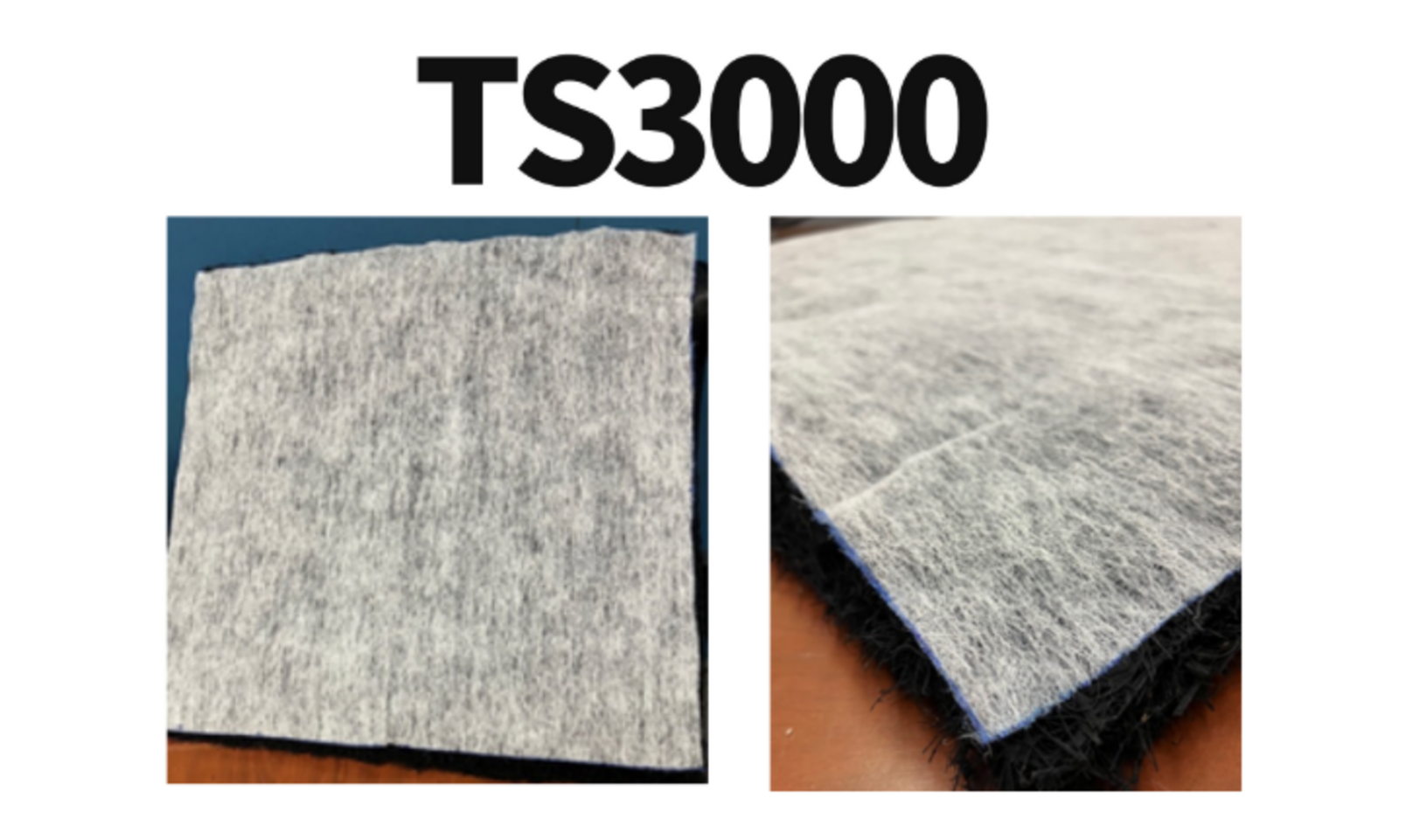

The TS3000 Carbon Filter is engineered to address these issues for both standard and high-VOC operations.

🔷 Why It Matters
Many factories face downtime because overspray buildup clogs the filter, causing pressure drops and inconsistent coating quality.
With its coconut-fiber activated carbon and Anti-Clogging Pre-filter, the TS3000 helps stabilize airflow, extend maintenance intervals, and reduce NG.

🔷 How It Works
The TS3000 handles overspray, odor, and VOCs through three integrated layers:

1) Activated Carbon Adsorption Layer
Coconut-fiber activated carbon with high porosity continuously adsorbs VOCs and odors.

2) Anti-Clogging Pre-filter
Captures large paint particles before they reach the carbon layer → prevents clogging and extends filter life.
(-Used in both TS3000S and TS3000H-)

3) Optimized Airflow Structure
Multi-layer construction minimizes resistance, ensuring stable supply/exhaust airflow.

🔷 Series Differences (S vs H)
■ TS3000S — For Dry Booth / Automotive Booth
- Size: 500 × 500 × 40 mm
- Media: Coconut Fiber
- Applications: Dry Booth, Automotive painting
- Features:
　-　Pre-filter reduces clogging
　-　Media-only replacement when carbon is saturated

■ TS3000H — For High-VOC / Heavy-Load Exhaust
- Size: 500 × 500 × 10 mm
- Applications: High-VOC concentration / heavy-load ventilation
- Features:
　-　Pre-filter included
　-　Handles higher paint & VOC loads

Model Summary:
- TS3000S → General paint operations
- TS3000H → High-VOC or heavy-duty environments

🔷 Performance Data
- Efficiency ≥ 85% (ASHRAE)
- Dust Capacity 1300 g/m²
- Pressure Drop 59 Pa initial / 160 Pa final (2.5 m/s)
- Max Temp 80°C

These values indicate stable airflow and long service life.

📘 Summary
TS3000 Carbon Filter is engineered to efficiently remove overspray, odor, and VOCs.
Both S and H models stabilize airflow, reduce clogging, and improve overall coating quality — helping reduce long-term operational costs.

📥 For full specifications or a quotation, contact our team or download the catalogue.

ーーーーーーーーーーーーーーーーーーー

❓ FAQ
Q1: What can the TS3000 filter?
A: Paint overspray, odor, VOCs, and airborne paint dust.

Q2: How frequently do I need to replace it?
A: With a Dust Capacity of 1300 g/m², the replacement cycle is much longer than standard filters.

Q3: Why two models (S/H)?
A: To match different load levels:
- S → Standard painting
- H → High-VOC/heavy-load applications

ーーーーーーーーーーーーーーーーーー

🔗 Cluster Internal Link
Basic Knowledge: https://prime.nc-net.com/100377/en/product_others/detail_goods/27596
Advance Knowledge: https://prime.nc-net.com/100377/en/product_others/detail_goods/27598

---

📚 Glossary
- VOC: Volatile Organic Compounds
- Adsorption: VOC capture by activated carbon
- Pre-filter: Captures large particles before main media
- Pressure Drop: Air resistance across the filter
- Dust Holding Capacity: How much particulate the filter can retain

📖 References
1. TS3000 – Technical Data Sheet
2. Carbon Filter Series – Product Catalogue

🔒 Verified Information
- Yuki Okuno – Project Leader, TS Coating (Thailand)
- TS3000 Technical Data Sheet
- Carbon Filter Series Catalogue
