Technology / product information

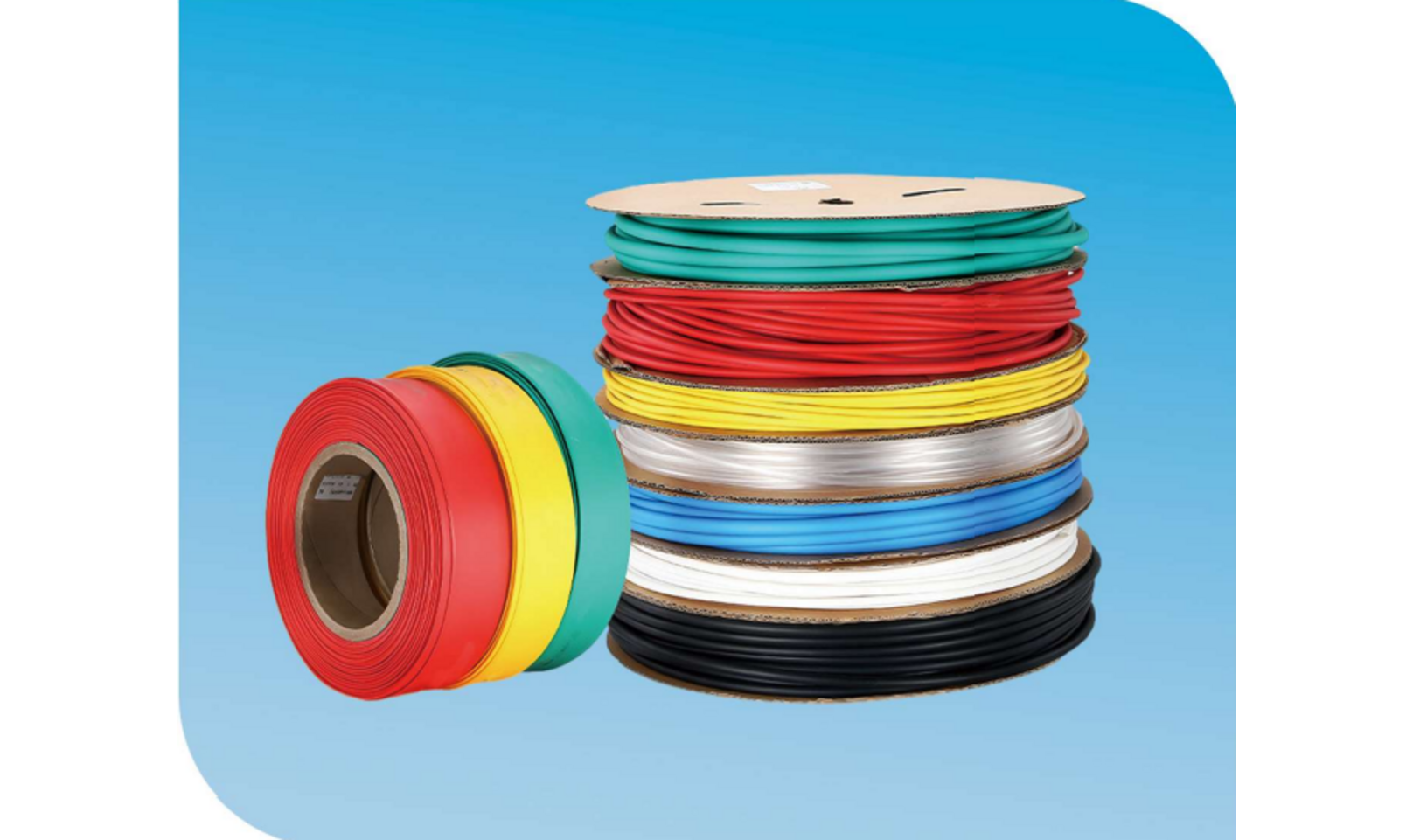

This halogen-free heat shrink tube is made from environmentally safe polyolefin and delivers excellent insulation, abrasion resistance, and flame retardancy. Compliant with RoHS, REACH, SONY GP, and UL/CSA standards, it’s ideal for bundling and protecting wires in control panels, vehicles, telecom equipment, and appliances.

■ Key Specifications
・ Material: Halogen-free polyolefin
・ Shrink Ratio: 2:1
・ Shrink Start Temperature: \~70℃
・ Full Recovery Temperature: 125℃ (UL224 certified)
・ Operating Temperature: -55℃ to +125℃
・ Rated Voltage: 300V / 600V
・ Certifications: RoHS, REACH, SONY GP, UL/CSA

■ Features and Benefits
・ Toxin-Free Protection: Halogen-free—no toxic gas emission during combustion
・ Safe & Certified: Meets UL224 VW-1 flame retardancy
・ Durable & Flexible: Excellent abrasion resistance and stretchability
・ Color-Coded Organization: Black, red, yellow, blue, green, transparent
・ Versatile Packaging: Bulk reels and cut-to-length options for convenience

■ Applications in Industry
・ Industrial Machinery / Panels: Internal wire insulation and identification
・ Automotive Wiring: Harness protection for engine and underbody use
・ Telecom / IT Equipment: Structured cable bundling and safety
・ Consumer Electronics / Home Appliances: Insulation for high-voltage zones
・ Measurement Tools / Public Utilities: Eco-safe wiring in regulated sectors

■ Why Choose This Heat Shrink Tube
・ Fully compliant with RoHS, REACH, and SONY GP
・ UL/CSA certified for international quality and safety
・ Reliable shrink performance even in tight, complex cable zones
・ Cost-effective protection for both OEM and maintenance operations

■ Technical Details
・ Tensile Strength: ≥10.4 MPa
・ Elongation at Break: ≥200%
・ Dielectric Strength: ≥15 kV/mm
・ Flame Resistance: UL VW-1 certified
・ Standard Diameter Range: φ0.8mm – φ40mm

■ Installation Guidelines
・ Choose tube size based on pre-shrink cable diameter
・ Use heat ≥125℃ for complete recovery and tight fit
・ For high-voltage setups, match wall thickness to system requirements

■ For further details, please contact us or download the catalog via the link below.
