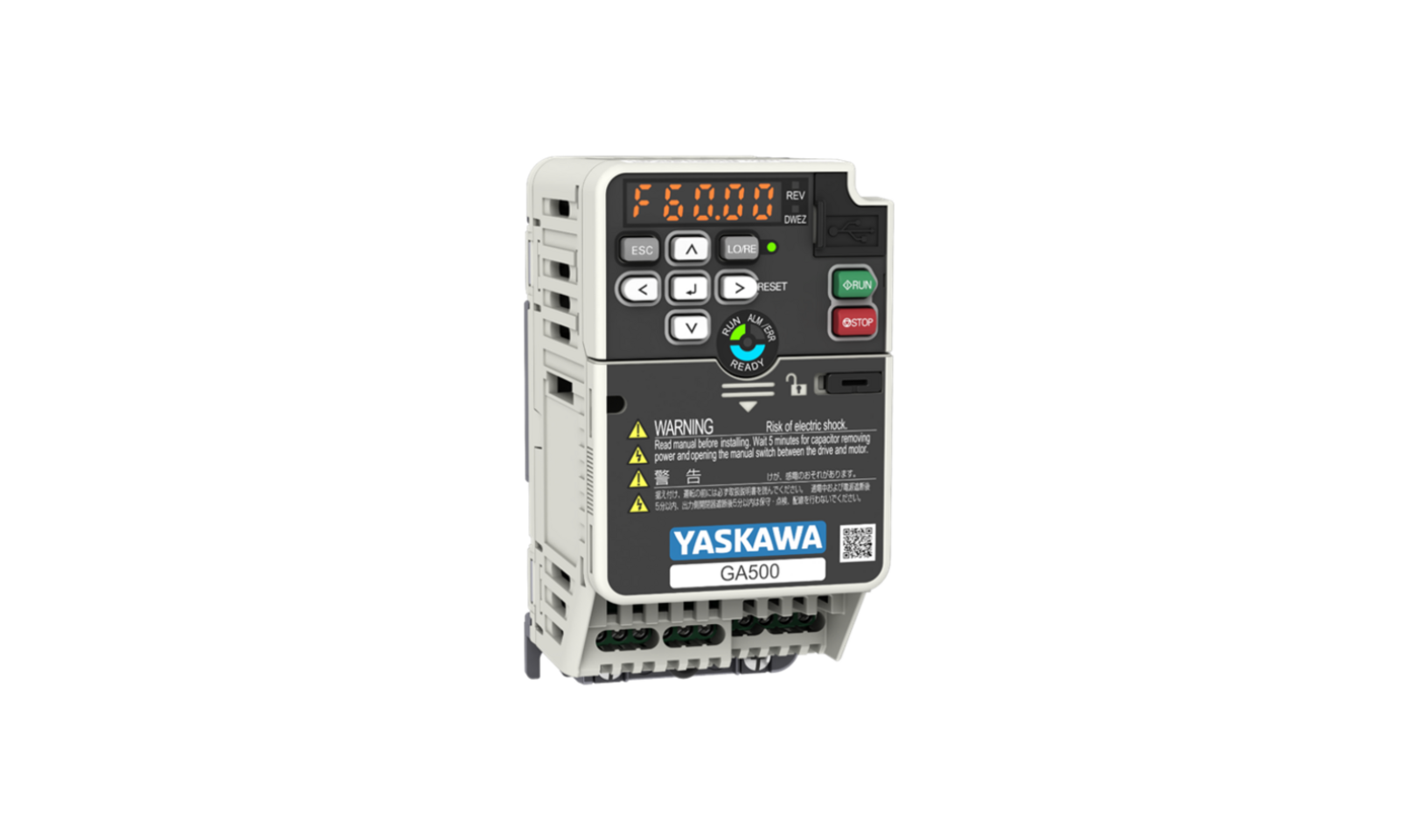

The GA500 from YASKAWA is a compact, high-performance industrial AC inverter drive that supports a variety of motor types and delivers up to 30 kW output. With simple setup, predictive maintenance, and smart factory integration, it’s ideal for automation in space-constrained environments.

The GA500 AC microdrive is engineered to control induction, permanent magnet (PM), and synchronous reluctance motors all from a single unit. It features EZ Vector Control, enabling seamless high-speed and high-torque applications with output frequencies up to 2000 Hz. The compact design reduces control panel size and wiring complexity.

Setup is fast and intuitive via USB or DriveWizard Mobile smartphone app, allowing initial configuration in just five minutes. With built-in STO (Safe Torque Off) certified to SIL3/PLe and a 10-year maintenance-free design, the GA500 provides both safety and reliability for long-term industrial use.

■ Key Features
- One inverter supports multiple motor types (IM, PM, Synchronous Reluctance)
- Up to 2000 Hz output for demanding high-speed equipment
- Easy setup via smartphone (DriveWizard Mobile) or USB even without power
- Built-in STO (Safe Torque Off), certified SIL3/PLe for safety-critical systems
- Maintenance-free operation for up to 10 years with predictive alerts
- EMC filter options for enhanced noise reduction
- Flexible mounting: IP20, UL Type 1, DIN rail, external cooling support
- Compact design saves valuable control panel space

■ Technical Specifications
- Output Power Range (ND):
　・200V Single-phase: 0.1–3.7 kW
　・200V Three-phase: 0.1–22 kW
　・400V Three-phase: 0.2–30 kW
- Output Frequency: 590 Hz (up to 2000 Hz optional)
- Overload Protection: 150% (HD), 110% (ND) for 1 minute
- Communication: MECHATROLINK, Modbus, EtherCAT, PROFINET, Bluetooth (optional)
- Operating Temp: -10°C to +50°C
- Protection: IP20 (standard)
- EMC Filter: Built-in (optional models)

■ Ideal Applications
- Conveyor systems and material transport control
- Energy-efficient HVAC systems with fans and pumps
- High-speed machines: polishing, spindle motors, CNC systems
- Food, pharma, and electronics automation requiring precision and hygiene
- Smart Factory and IoT-enabled production line integration

Combining compactness, advanced safety, and long-term reliability, the GA500 is the smart choice for industrial automation in Thailand’s evolving manufacturing sector.

■ Download detailed specifications or contact us for more information.
