Product Info

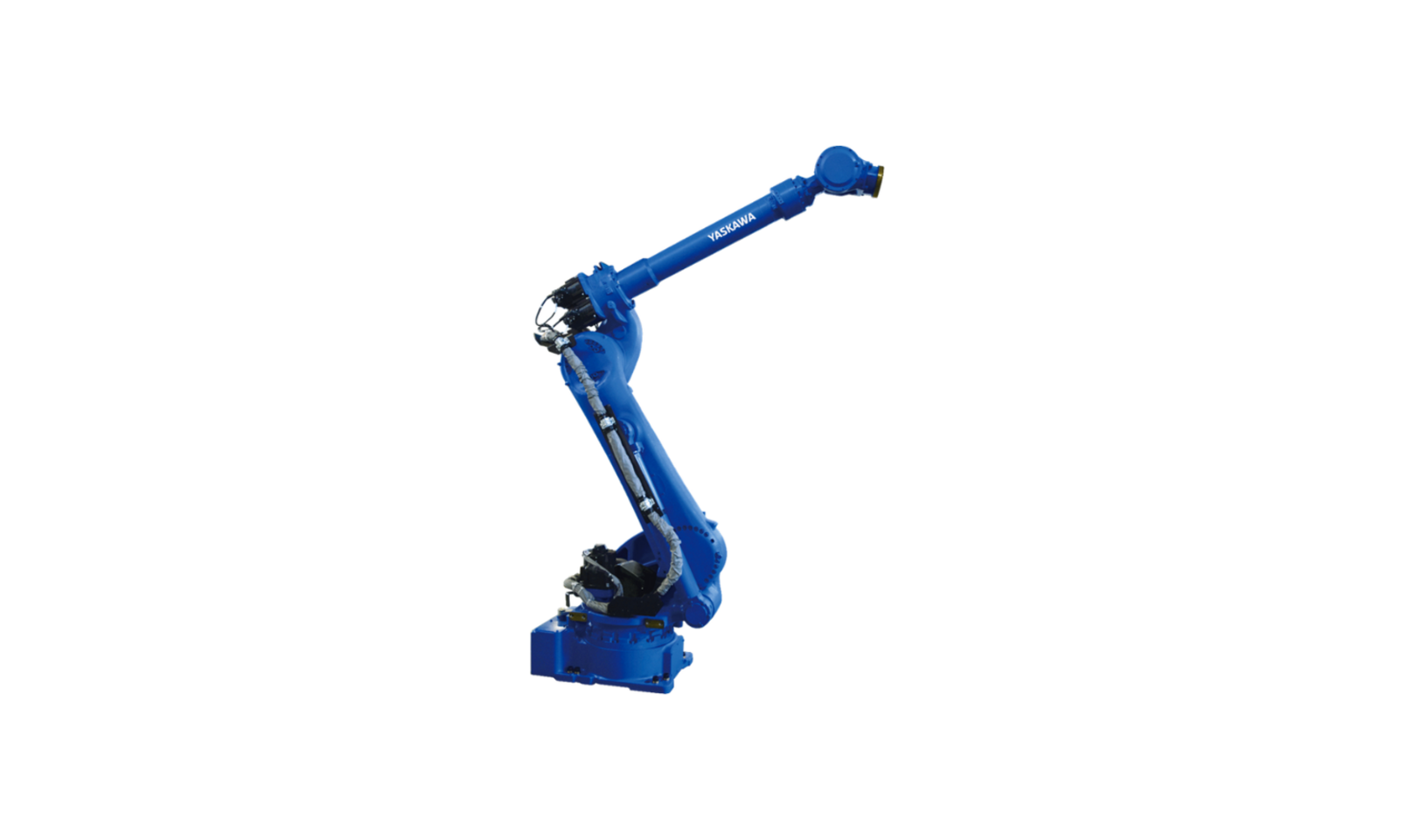

The MOTOMAN-GP180 is a high-performance 6-axis robot by YASKAWA, designed for fast, accurate handling of heavy parts. With a 180 kg payload and 2702 mm reach, it excels in automotive, casting, and logistics applications where power, speed, and space efficiency are essential.

The MOTOMAN-GP180 is engineered to streamline the handling of large and heavy components. Its slim design minimizes interference with tools and nearby equipment, enabling tight robot spacing and compact cell layouts. With ±0.05 mm repeatability and wrist torque tolerance up to 1000 N·m, the GP180 is built for precise, stable movement of large workpieces.

This robot integrates seamlessly with YRC1000 controllers for advanced motion control. Its flexible installation options including wall or ceiling mounting and IP67-rated wrist make it suitable for demanding environments.

■ Key Features
- 180 kg payload capacity for heavy-duty applications
- Long reach of 2702 mm for wide workspaces
- ±0.05 mm repeatability ensures accurate operations
- High wrist torque (up to 1000 N·m) enhances stability
- IP54-rated body and IP67-rated wrist for dusty or wet environments
- Floor, wall, and ceiling mounting flexibility
- Compatible with YRC1000 controller for precise control

■ Technical Specifications
- Payload: 180 kg
- Reach: 2702 mm
- Repeatability: ±0.05 mm
- Axes: 6 (articulated)
- Robot weight: approx. 1020 kg
- Power: 5.0 kVA
- Motion range:
- S: ±180°
- L: +76°/-60°
- U: +90°/-86°
- B: ±130°
- R/T: ±360°
- Speed (T-axis): 265°/s
- Wrist torque capacity:
- R/B-axis: 1000 N·m
- T-axis: 618 N·m
- Inertia capacity: 90 kg·m² (R/B-axis)
- Protection: IP54 (body), IP67 (wrist)
- Mounting: Floor (optional IP65 drip-proof version)

■ Applications
- Automotive part handling and assembly
- Press and casting line automation
- Heavy material palletizing and depalletizing
- Automated warehousing and logistics
- Inter-process transport with AGV compatibility

The MOTOMAN-GP180 offers robust performance for Thailand’s industrial automation needs, where speed, payload, and precision converge to deliver high-value automation in limited space.

■ Download detailed specs or contact us for a consultation.
