Product Info

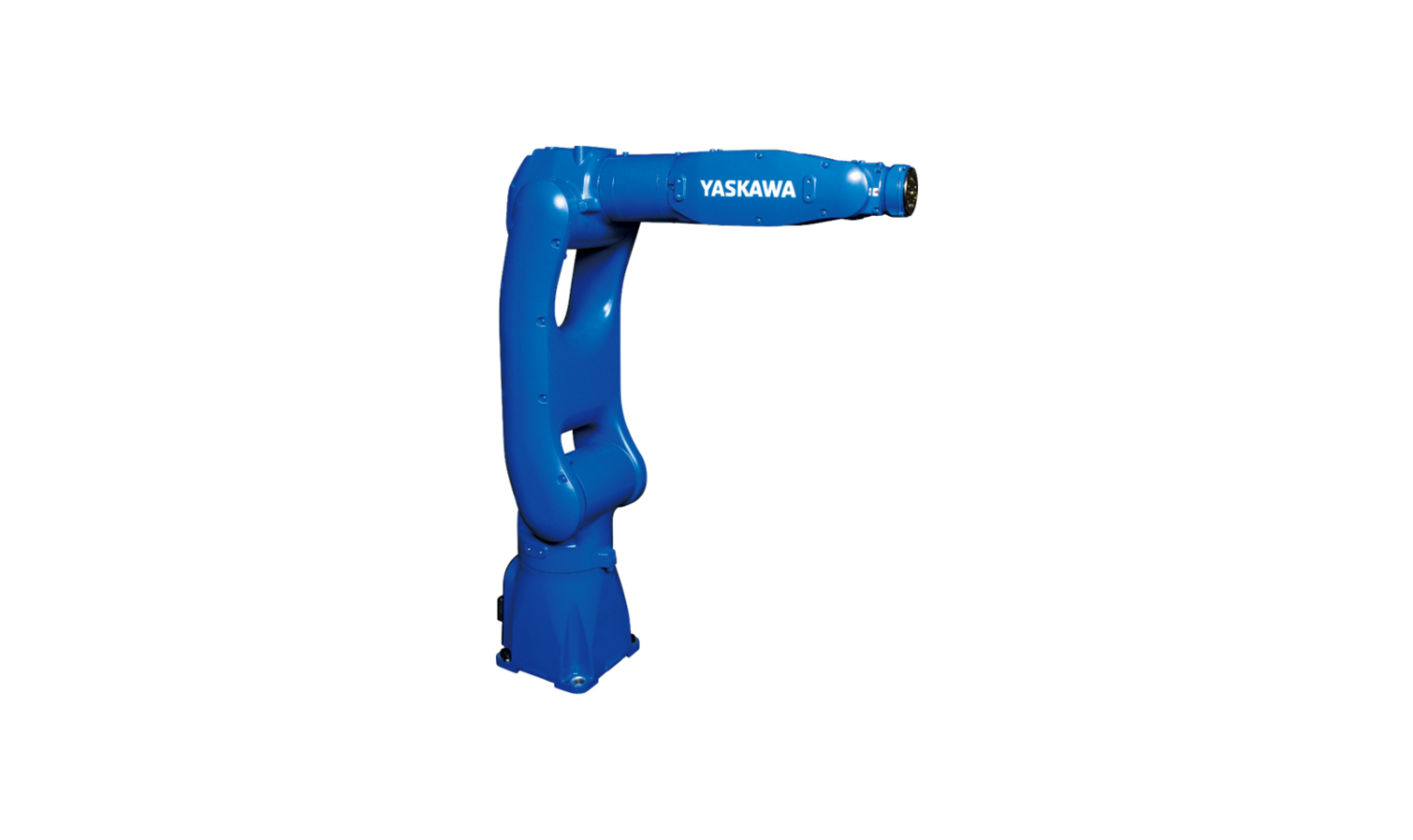

The MOTOMAN-GP7 is a compact 6-axis industrial robot designed for high-speed, high-precision tasks in tight spaces. With ±0.01 mm repeatability and IP67 protection, it is ideal for Thai manufacturers seeking accurate, space-saving automation.

The MOTOMAN-GP7 from Yaskawa is a 6-axis articulated robot engineered for compact automation cells that demand both speed and precision. It handles payloads up to 7 kg, reaches 927 mm, and delivers class-leading repeatability of ±0.01 mm per ISO 9283. These capabilities make it ideal for component assembly, high-speed part picking, and polishing operations.

Its IP67-rated sealed body and wrist allow it to operate reliably in dusty or coolant-filled environments. The GP7 supports flexible mounting orientations floor, wall, ceiling, or tilt and is compatible with YRC1000/YRC1000micro controllers. Programming is easy via a teach pendant or the Smart Pendant for intuitive setup.

■ Key Features
- ±0.01 mm repeatability for high-precision manufacturing
- Slim, compact body saves valuable floor space
- IP67-rated protection on both body and wrist
- Bottom-exit cable routing reduces interference in narrow spaces
- Supports direct installation of solenoid valves (1–3 circuits)
- Battery-free position data storage enhances uptime
- Quick wiring and easy maintenance for faster deployment

■ Technical Specifications
- Payload: 7 kg
- Reach: 927 mm
- Repeatability: ±0.01 mm
- Axes: 6 (vertical articulated)
- Weight: Approx. 34 kg
- Protection: IP67 (all axes)
- Power: 1.0 kVA
- Mounting: Floor, ceiling, wall, or tilted
- Motion range:
- S: ±170°, L: +145°/-65°, U: +190°/-70°
- R: ±190°, B: ±135°, T: ±360°
- Max speed (T-axis): 1000°/s

■ Ideal Applications
- Precision assembly and alignment of small components
- High-speed picking from conveyors
- Random bin picking with 3D vision systems
- Force-controlled insertion and polishing with MotoFit sensor
- Cleanroom handling for electronics, food, or medical industries

The MOTOMAN-GP7 combines precision, compactness, and ruggedness making it a strategic choice for Thai factories optimizing for high-precision automation in limited spaces.

■ Download the detailed spec sheet or contact us for further information.
