Product Info

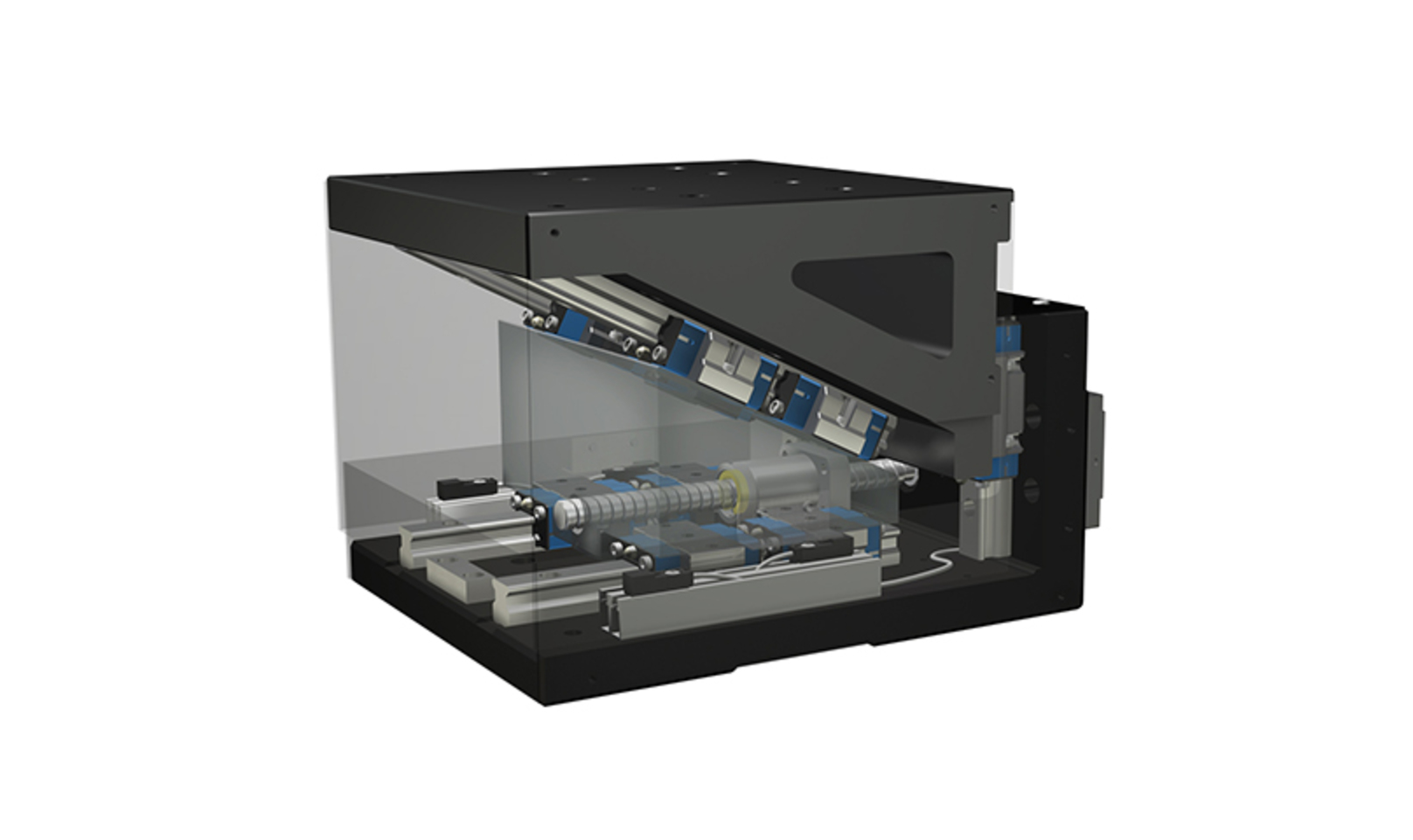

The IKO TZ Series Precision Lifting Table features a wedge-driven vertical mechanism guided by C-Lube Linear Roller Way Super X, enabling high-accuracy, maintenance-free vertical adjustment. Ideal for automated systems, assembly equipment, and precision inspection.

■ Key Features
- High Precision & Rigidity: Stable wedge-lift mechanism paired with a four-row roller guide ensures minimal deflection and smooth motion.
- Full Closed-Loop Control: Linear encoder feedback with 0.01 μm-level precision ensures repeatable vertical positioning.
- Maintenance-Free: C-Lube capillary lubrication system supports long-term use without frequent relubrication.
- Compact Stroke Design: Supports vertical lifts up to 24 mm; available reduction ratios: 1:2 and 1:4.
- Integrated Sensor System: Built-in limit and home position sensors ensure precise control and space efficiency.

■ Specifications
- Reduction Ratios: 1:2 and 1:4
- Lift Stroke: Up to 24 mm
- Guide Mechanism: C-Lube Linear Roller Way Super X
- Positioning Control: Full closed-loop system with high-resolution linear encoder
- Sensors: Built-in home and limit sensors
- Materials: High-rigidity cast iron base (standard), custom load options available

■ Applications
- High-precision assembly platforms
- Semiconductor or LCD processing alignment
- Micron-level inspection jigs
- Automation systems requiring compact z-axis adjustment

■ IKO Thompson Asia Coverage
- Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions
- Singapore
- Malaysia: Kuala Lumpur, Penang, and surrounding regions
- Indonesia: Jakarta and surrounding regions
- Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions
- India

👉 Download the PDF or contact us for a consultation.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
