Product Info

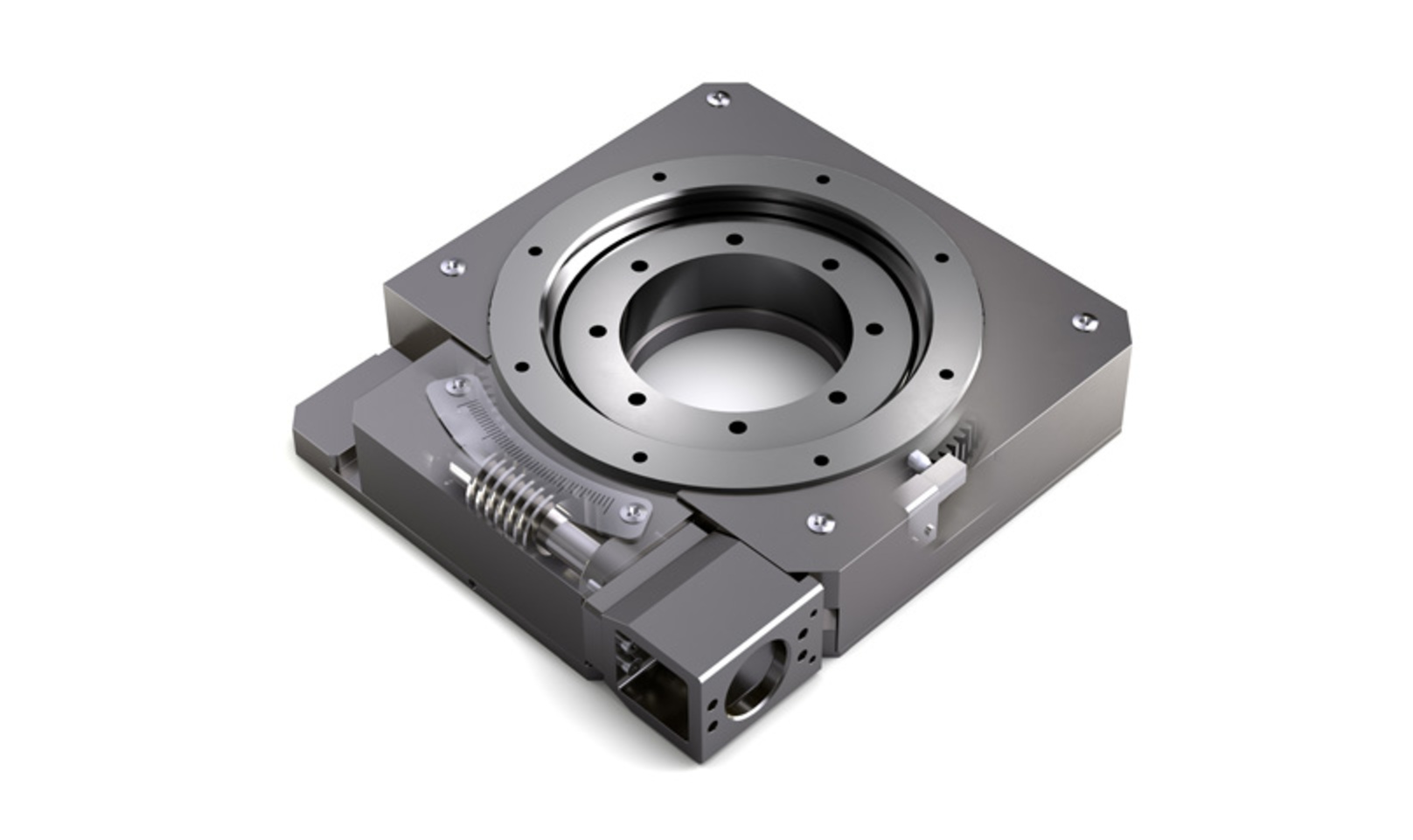

The IKO SK W Series Rotation Stage delivers unlimited 360° rotation with high precision and rigidity. With a worm gear mechanism and cross roller bearing, it ensures stable rotational positioning for inspection, automation, and material processing systems.

■ Features
- Unlimited 360° Rotation: Supports continuous rotation (320° max for sensor-equipped models).
- High Precision: Table wobble ≤ 5 μm and repeatability ±7.2 arcseconds ensure stable performance.
- Rigid & Compact: Cross roller bearing ensures exceptional moment rigidity (0.04 sec/N·cm) in a compact frame.
- Speed & Accuracy: Table speed up to 5 rpm with positioning accuracy of 21.6 arcseconds.
- Sensor Integration: Origin sensor standard; optional limit sensors available for application safety.

■ Specifications
- Rotation Range: Unlimited (360°), 320° with limit sensors
- Positioning Accuracy: ±21.6 arcseconds
- Repeatability: ±7.2 arcseconds
- Wobble: ≤ 5 μm (≤ 25 μm with sensors)
- Rotation Speed: Max 5 rpm (table), 600 rpm (worm axis)
- Load Capacity: 50 N
- Sensor System: Origin sensor standard, optional limit sensors
- Rigidity: Moment stiffness of 0.04 sec/N·cm

■ Applications
- Precision Inspection: Microscopy, metrology platforms
- Automated Testing: Rotational alignment systems
- R\&D and Prototyping: Experimental setups requiring repeatable rotation
- Material Handling: Light-load rotary fixtures

■ IKO Thompson Asia Coverage
- Thailand: Bangkok, Chonburi, Ayutthaya, Samut Prakan
- Singapore
- Malaysia: Kuala Lumpur, Penang
- Indonesia: Jakarta
- Vietnam: Ho Chi Minh City, Hanoi
- India

📎 Download Brochure PDF or contact us for expert consultation.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
