Product Info

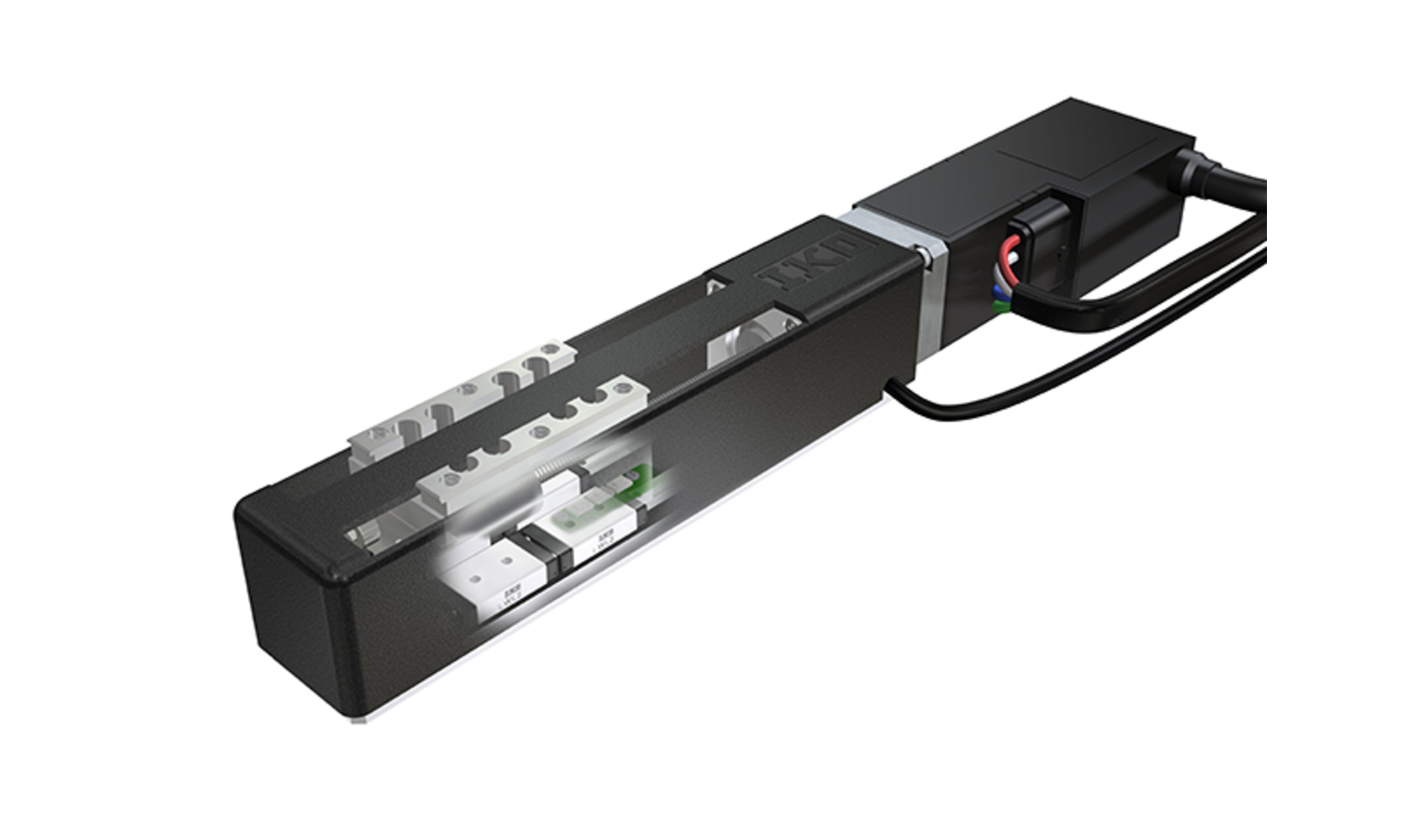

The IKO TM Series Micro Precision Positioning Table delivers ultra-compact, high-precision motion with built-in C-Lube lubrication. Ideal for medical devices, bioequipment, and electronic assembly, it offers stable and maintenance-free positioning in space-constrained environments.

■ Product Features
- Ultra-Compact Size: Cross-sectional height of just 20 mm and width of 17 mm enables integration into miniaturized equipment and narrow spaces.
- Precision Motion System: Combines a 2 mm-wide Micro Linear Way L and a 2 mm-diameter precision-ground ball screw for smooth, accurate travel.
- Maintenance-Free with C-Lube: Built-in lubrication system in both the linear guide and ball screw ensures long-term operation without manual re-lubrication.
- Optional Long Table: For applications with higher moment or combined loads—supports system-specific customization.
- Flexible Motor & Sensor Options: Compatible with AC servo motors (standard and high-torque), stepper motors, and built-in micro sensors (origin and CW/CCW limits).

■ Specifications
- Track Rail Width: 2 mm
- Ball Screw Diameter: 2 mm
- Lead Options: 0.5 mm, 1.0 mm, 1.5 mm
- Motor Types: AC servo, stepper motor
- Sensor Support: Origin detection, CW/CCW limits
- Size: Height 20 mm × Width 17 mm
- Material: Stainless steel for corrosion resistance

■ Applications
- Medical equipment and diagnostics
- Semiconductor and electronic assembly tools
- Bioequipment and research instrumentation
- Ultra-small measuring devices
- Micro coil winding systems

The IKO TM Series is the solution of choice for engineers building compact, precise motion systems with low maintenance needs and high integration flexibility.

■ IKO Thompson Asia Coverage
- Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions
- Singapore
- Malaysia: Kuala Lumpur, Penang, and surrounding regions
- Indonesia: Jakarta and surrounding regions
- Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions
- India

👉 Contact us or download the full brochure with CAD data and technical options.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
