🌟 Key Takeaways
• Cryogenic automatic deflashing machine developed using Japanese industrial gas engineering expertise
• Utilizes liquid nitrogen (LN₂) cooling to consistently remove fine flash and thin burrs
• Automates manual deflashing processes for rubber, elastomer, and plastic molded products
• Demo machine available in Thailand for pre-installation trials
• One-stop support covering equipment installation and liquid nitrogen supply systems
ーーーーーーーーーーーーーーーーーーーーーーーーーーーーーーー

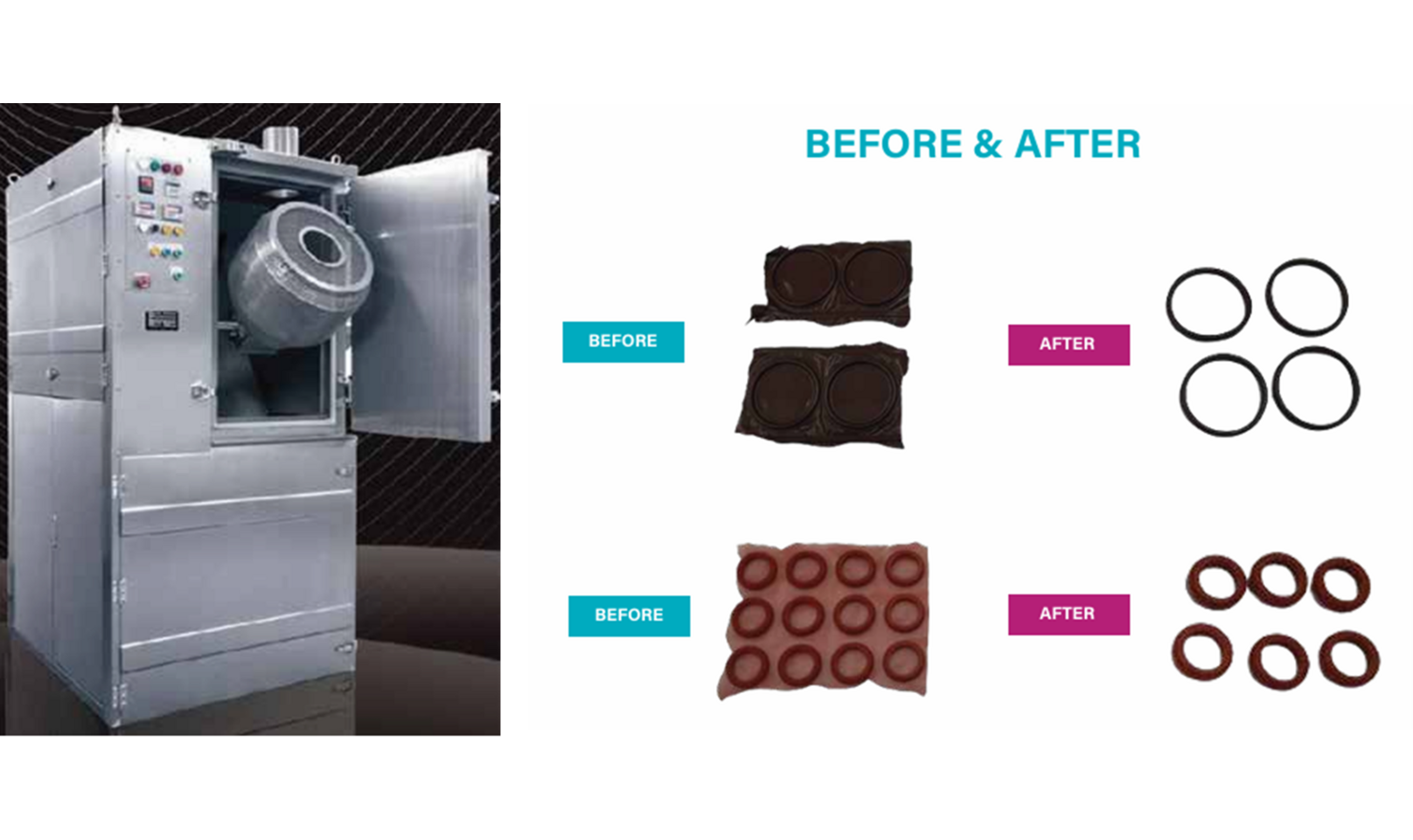

ULTRA SHOT® (NS-H Model) is a cryogenic automatic deflashing machine designed and developed by Resonac Gas Products.
Drawing on extensive know-how as a Japanese industrial gas manufacturer, this system integrates gas supply technology and industrial gas equipment expertise to achieve stable deflashing quality and suitability for mass production environments.

The machine primarily uses liquid nitrogen (LN₂) cooling to embrittle flash and burrs under cryogenic conditions. Plastic-based shot media is then projected onto the workpieces, selectively removing only the unwanted flash while minimizing impact on the product itself.
________________________________________

🔧 Deflashing Method and Key Features
• Cryogenic deflashing system based on LN₂ cooling
• Stable removal of fine flash and thin burrs
• Optimized processing conditions to minimize surface damage
• Automation of manual deflashing operations for rubber products
• Short processing cycles contributing to improved productivity
________________________________________

🏭 Main Applicable Products
ULTRA SHOT® (NS-H Model) is designed for the following applications:
• Rubber and elastomer products
• Plastic molded parts
• Industrial products currently processed by manual deflashing
※ Special configurations with dust explosion countermeasures are also available for die-cast products.
________________________________________

💡 Challenges of Conventional Processes and the Effect of ULTRA SHOT®
Manual deflashing processes often suffer from quality variation depending on operator skill, as well as long processing times.
By introducing ULTRA SHOT®, processing conditions can be standardized and repeatability ensured, enabling stable deflashing quality and reliable application in mass production lines.
________________________________________

⚙ Main Specifications (NS-H Model)
• External dimensions (W × D × H): 1,150 × 1,000 × 1,955 mm
• Machine weight: Approx. 800 kg
• Wheel rotation speed: Max. 7,200 RPM
• Barrel rotation speed: Max. 26 RPM
• Barrel capacity: 60 L
• Cooling temperature: Down to -130°C
• Power supply: 380 VAC / 200 VAC (3-phase)
• Power consumption: 5 kW
________________________________________

👍 Installation and Operational Support in Thailand
ULTRA SHOT® is fully supported in Thailand by
Siam Resonac T&T
• Pre-installation trials using a demo machine located in Thailand
• Maintenance, troubleshooting, and after-sales support by technical staff
• Technical assistance for deflashing conditions and cleaning processes
• Complete support for liquid nitrogen supply systems, including installation and piping
This comprehensive support structure enables not only equipment delivery but also full optimization of the cryogenic deflashing process.
________________________________________

📘 Summary
ULTRA SHOT® (NS-H Model) is a cryogenic automatic deflashing solution developed to automate manual deflashing operations for rubber and plastic products.
Combining Japanese industrial gas technology with local demo, technical, and infrastructure support in Thailand, it provides consistent quality and a smooth transition to mass production environments.

If you require a catalog download or would like to discuss trial testing, please feel free to contact us.

ーーーーーーーーーーーーーーーーーーーーーーーーー

❓ FAQ
Q1: What cooling gas is used?
A1: Liquid nitrogen (LN₂) is used.

Q2: What types of products are suitable?
A2: Rubber products, elastomer components, and plastic molded parts that require deflashing.

Q3: Is testing available before installation?
A3: Yes. Trial testing can be conducted using the demo machine located in Thailand.

📚 Glossary (Key Terms)
• Automatic deflashing machine: Equipment that removes flash using cryogenic treatment and shot media projection
• Flash: Thin excess material generated during the molding process
• Shot Media: Plastic-based media used for impact deflashing
• Cryogenic processing: Material processing technology utilizing extremely low temperatures
