Air-powered, oil-free, stand-type industrial fan, air fan

This air-powered industrial fan is useful for warehouse ventilation, heatstroke prevention, and as a circulator.
It features a long-life motor capable of continuous operation, and since it is air-powered, it can be used in explosion-proof areas.
The oil-free design eliminates the need for a lubricator and oil, making it energy efficient.

Large 24-inch stand type

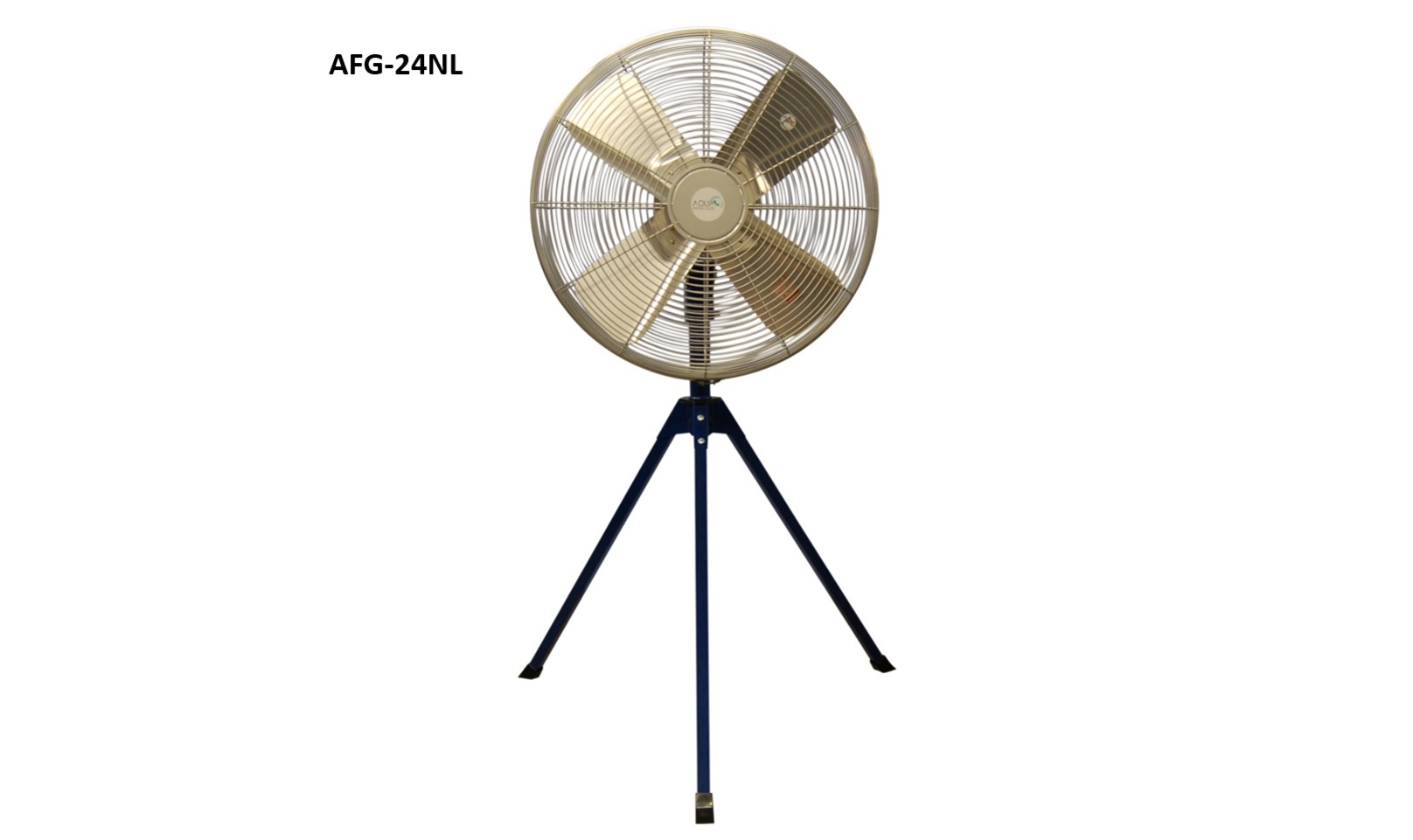

The stand type “AFG-24NL” oil-free air motor factory fan is a standard large model for commercial use, but it is lightweight thanks to its aluminum blades,
making it surprisingly easy to carry despite its size. It can be adjusted for height, swivel, and angle, allowing it to be installed anywhere.
The maximum airflow is 280 m³/min, an improvement over the previous 18-inch model. By promoting air circulation in factories and other spaces, it helps to use air conditioners more efficiently,
contributing to energy-saving measures. Due to its large size, it can cover a wide area, making it useful for ventilation as part of infection prevention measures.

Model Number: AFG-24NL
Type:　　　　　　　　　　 　　　 Stand-type
Swivel function (left/right): 　　　 55°
Angle adjustment (up/down): 　 4 stages (40°)
Fan diameter (mm): 　　　 600
Compressor horsepower: 　　　 5
Operating air pressure (MPa): 　　0.4–0.6
Air consumption (m³/min): 0.46
Maximum airflow (m³/min): 280
Maximum rotation speed (rpm): 1,000
Air connection port: Air coupler plug (male)
Material (body/blades): Steel/AL
Weight (kg): 12.6

Stand type with stable construction that is resistant to tipping.
Equipped with swivel function and angle adjustment.

No lubricator required, no oil absorption necessary.
Can be used as a circulator with angle adjustment.
Continuous operation possible with long service life.
Proven track record of use in explosion-proof areas.
Rotation speed adjustable with air valve throttle.
Silencer and air filter included as standard.


Environmental improvement → Heatstroke countermeasures
Cost reduction → Efficiency improvement in drying work
Safety assurance → Reduction of oil absorption work


For ventilation, drying, and air circulation in areas where oil is undesirable, such as paint booths.
For air circulation in high-temperature locations and drying rooms.
Can be used in high-temperature, high-humidity environments (temperature: 0 to 60 degrees Celsius).
For use in areas where open flames are prohibited, such as paint booths.
For ventilation in areas where chemical odors accumulate.
For cooling and drying cast iron and aluminum die-cast products.
Can also be used for product drying.
Promotes ventilation by expelling air outdoors.

《Application Examples》
Chemical plant factories, painting factories, automotive transport ships, shipyards
Tunnel construction, LP gas station underground tank ventilation, explosion-proof fan substitute
Ships, deck manholes, etc.
